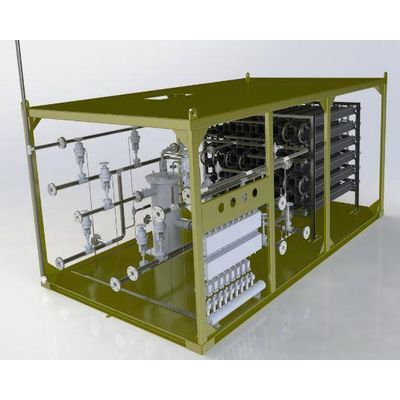

Fixed-type LNG Station (standard station)

Adopts a fully functional process pump skid design, equipment arrangement completely accord with related national LNG standards, by the advanced process simulation and numerical simulation analyze and optimize design, filling process system having passed the 7 x24 uninterrupted charging pressure test to assure the safe, stable and efficient LNG station.

System and product design

The steam turbine of 300 MW and below auxiliary machine supporting design, cooling area range from 160 m2 to 20000 m2.u00a0

Performing ASME, HEI, TEMA etc. home and abroad design standard.

Material include carbon steel, low alloy steel, high alloy steel, titanium, copper, composite materials, etc.

Condenser design using 3 d simulation and advanced technologies such as steam flow field distribution CFD optimization; System design using the process simulation technology and structure stress analysis technology;

Condensation water level adjusting control system design.

Cooling pipe specification: outside diameter 16 mm to 30 mm, wall 0.5 mm to 1.5 mm; Can meet the process requirements of different users.

Advantage

High safety: completely conform to the latest national design standard , original 3 level over pressure protection of system security auxiliary control device, as well as the independent operation of the combustible gas leakage alarm system, to ensure the station security;

High stability: equipment through three-dimensional numerical simulation optimization with 7 x24 uninterrupted charging pressure test is a strong basis for the stability of the system running;

High efficiency: precise positioning of equipment layout and perfect the flow in the process piping design to ensure the efficient and stable liquid flow, liquid adding and unloading speed is in the leading position of the industry;

Comprehensive functions: have two regulating modes, three unloading modes and charging mode when unloading, it's the process design with most complete function in the industry;

High automation degree: all the models adopt the automatic control system, without manual intervention, have perfect fault diagnosis signal feedback and eliminate program.

Patent

3 level safety device of LNG stations, ZL201420655435.5;

A kind of weighing skid used for online weighing, ZL201420656657.9;

A kind of LNG charging device, ZL201420222068. X;

A kind of LNG charging gun protection device, ZL 201320779174.3;

A new kind of LNG filling station, ZL 201320824682.9;

A new kind of charging gun that can melt the nozzle frost automatically, ZL201320780315.3.
