Product Description

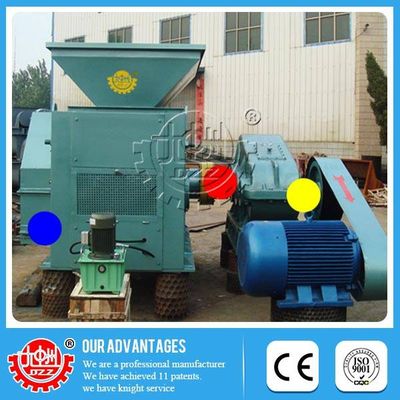

1.Simple introduction of BRIQUETTE MACHINE
Zhongzhou series Briquette Pressure machine, mainly used to suppress difficult molding powder materials , characterized by forming pressure, the host rpm adjustable , with a spiral Feeding Device. Briquette Pressing Machine can be used to suppress coal , iron , coke , aluminum powder, iron , iron oxide skin, toner , toner , slag , gypsum, tailings , sludge , kaolin , activated carbon, coke powder and other end , Powder , waste, waste residues, are widely used in refractory , power plants , metallurgy , chemical , energy , transportation, heating , etc. , produced by the compression molding machine after the briquette materials , energy saving , easy to transport , increase of wastes Utilization, with good economic and social benefits.
2.Working principle of BRIQUETTE MACHINE
This series of pressure machine will pass the power on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to enter the briquette roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder briquette.
Product Feature
Main role and characteristics of BRIQUETTE MACHINE
The machine can press all kinds of mineral powder, metal powder, coal powder, coke powder and other materials to make them molded. Because of the mandatory squeeze rollers, so the products have the three high characteristics: high density, high strength, high hardness, Because of the mandatory squeeze rollers, so the products have high density, high strength, high hardness, and the local roll is used in 650Mn hard materials with good wear resistance. Effectively improve the life of a roll.
Product Specification / Models
Model
PerformanceZZXM-4ZZXM-6ZZXM-8ZZXM-10ZZXM-15ZZXM-20ZZXM-30ZZXM-40
Output(t/h)3~4681015223040
Roller width(mm)250240220300336630A720A800A
Roller diameter(m)360400450500650650750850
Power(KW)7.5-1111-1515-18.518.5-3022-4530-5555-9090-130
Rotary speed of main spindle(r/mi)1815151212111010
Application / Models
Application of coal briquette machine:
The briquette machine have been mainly used in home fire, heating with anthracite honeycomb made of cylindrical briquettes. Previously been processed into the coal sphere slightly larger than ping-pong, and later the coal processed into one cylinder, and marked with a number of holes inside the cylinder, because it can increase the surface area of coal, so that the full combustion of coal, to reduce resource waste.
Other Information
Our services
1.any problem before or after the delivery, you could find and talk with us anytime anywhere
2.We can send technicians to abroad
3.Specialized drawing are designed for you
4.Excellent after sales service. reply your confusion in time
