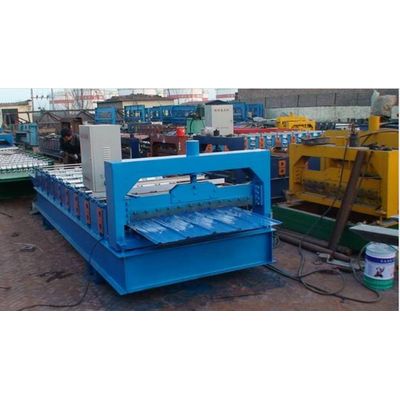

color steel roll forming machine

color steel roll forming machine

Main parameters of the machine

1.suitable material to process:color steel or galvanized sheet

2.Thickness of the plate:0.4-0.8mm

3.Effective width:900mm

4.coil width1080mm

5.wave height15mm

6.wave length225mm

7.productivity8-10m/min

8.Voltage380v/50hz, 3 phases

9.material of the bladeCr12

10.hydraulic40#

11.Control systemPLC Control,easy to operate,high precision,and work stably.

12.main power5.5kw

Technical process:

Manual decoiler-feed with guide-roll forming-press step-

1)low cost,little error

2)high efficiency,good price

3)steady running

4)CE standard

25-210-840

The production line are mainly constituted by material entry frame,roll forming machine,automatic shearing mechanism ,hydraulic system,computer control system that adopts imported PLC,high precision length counting system and so on.
