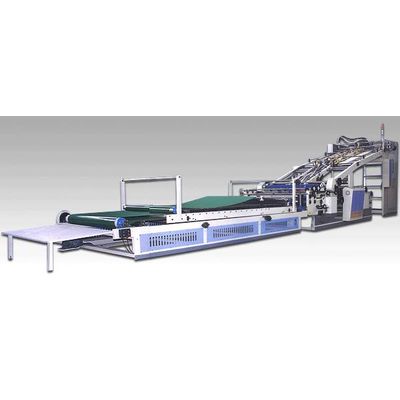

automatic carton laminating machine

Major feature:

1.Automatic feeding for top sheet and bottom sheet.

2.Integrated control with PLC can provide easy operation & trouble shot during production. Safety for user is considered and widely used in the machine design.

3.Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.

4.Elastic front register positioning, the bottom sheet does not exceed the top one, the front-and-back distance between the top sheet and the bottom sheet can be adjusted.

5.Suitable for laminating bottom cardboard more than 300g/m2 with top paperboard, laminating paperboard with A/B/C/D/E flute corrugated cardboard, and laminating corrugated board.

ModelBL-1100SBL-1300SBL-1300LBL-1450SBL-1450LBL-1600

Max. paper

WXL(mm)1100X11001300X11001300X13001450X11001450X13001600X1450

Min. paper

WXL (mm)350X350350X350350X350350X350350X350350X350

Bottom paperMin. weight (g/m2)300300300300300300

Max. weight (g/m2)800800800800800800

Max. thickness (mm)101010101010

Surface paperMin. weight (g/m2)180180180180180180

Max. weight (g/m2)800800800800800800

Paste tolerance for cardboard and boardu00b11mmu00b11mmu00b11mmu00b11mmu00b11mmu00b11mm

Paste tolerance for cardboard and corrugated paperu00b11.5mmu00b11.5mmu00b11.5mmu00b11.5mmu00b11.5mmu00b11.5mm

Total Power (KW)121213131313

Speed (P/M)0-1000-1000-1000-1000-1000-100

Length (m)12.512.514.812.514.815.1

Weight (Kg)630068007200720076007800
