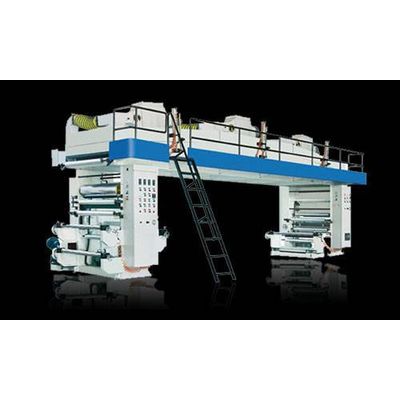

High Speed Laminating Machines

Product Description

Laminating Machines in this series are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.

1. Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.

2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing.

3. Oil warming system for composite reel, constant temperature control

4. Double reeling and double unreeling, tension magnetic powder for reeling and unreeling, photoelectric error correction for unreeling.

5. 4-sect heating in drying tunnel, possible to control temp erature by segments, initiative guiding roll in box.

Model RXFH-600B RXFH-800B RXFH-1000B

Width of laminating 600mm 800mm 1000mm

Laminating stratification 2 layer 2 layer 2 layer

Laminating speed 10-140m/min 10-140m/min 10-140m/min

Diameter of roll material 800mm 800mm 800mm

Oven temperature 120 120 120

Total power 44kw 48kw 52kw

Weight 7500kg 8200kg 8900kg

Overall dimenson 9600X2400X3300mm 9600X2650X3300mm 9600X2850X3300mm
