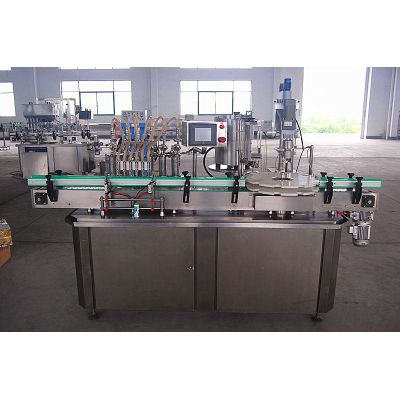

Product Description
Filling parts:
This parts adopts piston pump, which is suitable for all kind liquid materials, with high filling speed and high filling precision.
The parts adopts full-auto PLC and human-computer touch screen control system. For different volumes adjustment, we set several procedures, mode 1, mode 2, mode 3, mode 4``` Operators do not need too much complicated adjustments, the filling machine can switch between the three models easily.
To ensure the bottles and filling nozzles are in the correct position, we adopt neck-block device to make the whole filling process smooth and stable. No bottle no filling.
The filling nozzles are specialized made with vacuum back flow device to be leakage-proof.
All the material contact parts adopt SS316L, anti-corrosive! And SS304 for frame of the machine.
Equip float valve level controller in the buffering tank to feed material automatically!
Capping parts:(with pressing and screwing caps two function, pls kindly confirm with me your cap is pressed or screwed)
This parts has two functions: pressing and screwing caps; if just need screw caps, turn off the pressing part; if need to press caps, just need to turn off pressing part; it also can press and screw caps at the same time.
It adopts eletromagentic shake the feeder, the cap shakes in the feeder, then fallen to the given trial, when the bottle passes this equipment, the mouth of bottle take away the cap, there is a fixed equipment at the bottom of the bottle, locking the bottle, so it can endure the bottle not to turn over or overflow, so can endure the efficiency of capping, then it quickly cover spinning in the function of cam, because the cover spinning head is special used for the cap, it can prevent the cap damaging. The capping head adopts magnetic moment; it will skid automatically to avoid overtight, so the caps will never be damaged, and it can last long time without change anything.
Product Feature
Different volume adjustment
The machine piston is driven by servo motor. To adjust the filling volume, just input the data in the touch screen. High efficiency!
Bottle position correct device
To ensure the bottles and filling nozzles are in the correct position, we adopt neck-block device to make the whole filling process smooth and stable. No bottle no filling.
Filling nozzles
The filling nozzles are specialized made with vacuum back flow device to be leakage-proof.
Product Specification / Models
Technical parameter:
Filling volume: 0-5L (Adjustable)
Filling capacity: 500bottles/hour @500ml (Adjustable)
Capping head:1 head or 2 heads
Capping speed: 1500 bottles /hour @ one capping head
Suitable diameter: 25-100mm
Suitable height of bottle: 60mm-250mm
Application / Models
Food, chemical, medical
Other Information
After-sales service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Installation and Debugging
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer's side(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
