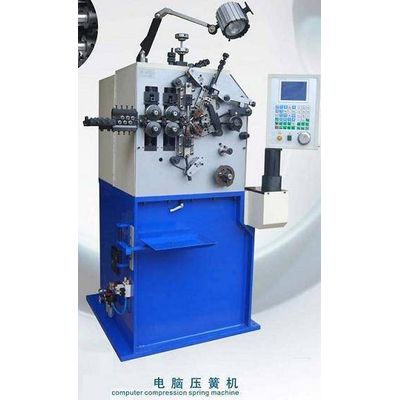

CNC compression spring machine

TR-220 spring roll machine is a two-axis computerized spring roll machine consisting of wire feeding axis and cam axis.

The two axes can work independently or synchronously by means of the program.

The space, outside diameter and cutting tools are driven by the cam motor. The wire feeding is driven by independent feeding motor.

The cutting tools can be adjusted by the cabinet's inside and outside easily and quickly.

This spring machine can manufacture various compression springs, oil seal springs, battery springs etc.



Optional accessories:

Torsion device, oil seal device, prize-up device, length gauge





Specification for Spring machine



Model

TR-220



Wire diameter

0.1-2.0MM



Max Out diameter

40MM



Max produce speed

250pca/min



Send line length

unlimited



Send line speed

800m/min



Wire feed axis

Y axis 2KW



Cam axis

X axis 2KW



LED screem

color/chinese/english



Max instruction value

X:359.9 Y:9999.9MM



Min instruction value

X:0.1 Y:0.01MM



Instruction carring capacity

150programs Max.999 lines for each program



Machine size

900*850*1600MM



Package size

1000*1000*1600MM



Net/gross weight

780/820KG



Power

200V 3P 50/60HZ
