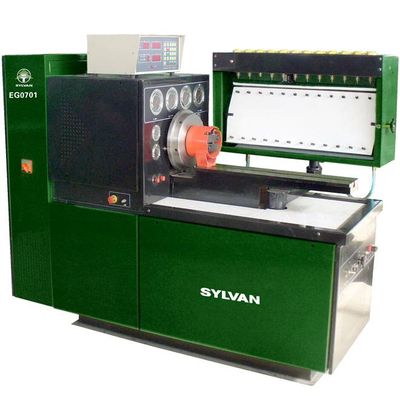

EG0701 Fuel Injection Pump Test Bench(Basic Model)

IntroductionAdopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotated distributor injection pumps EP/VA,EP/VM,VE..F.,also used for Chinese pumps such as I,II,III,K,P7,BQ.etc.

Features1. Changing frequency changing rotational speed2. Low fall of rotational speed and high output torque3. Display the oil quantity at Screen, high measurement precision;4. The functions of overvoltage overload and short circuit protection;5. Ten classes Rotation speeds presetting;6. Constant temperature controlled;7. Ultra low noise;8. Operating position: arbitrary side of the two work sides of the test stand;9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, then displayed on (17 LCD touch screen).10. Built-in air resource; 11. All data can be made into reports and printed;12. Automatically generating and displaying speed characteristics curve; (tooth bar stroke function on request)13. The data of the pumps can be saved, modified and obtained pump database;14. It is very easy to find the data of the pumps in pumps database;

motor output power(kw) 7.5,11,15,18.5 or on requestNumber of cylinders 12Scope of rotate speed (r/m)0~4000Volume of big and small volumetric cylinder(ml)45/150Volume of fuel tank(L)40Control temperature of fuel 40u00b12Filter oil precision of test bench4.5~5.5Air pressure(Mpa) -0.03~0.3Measuring range of flow meter(L/m)10~100Flywheel inertia(kg*m)0.8~0.9Stroke Counting (Rpm)50-9999Power of fuel pump motor (kw)0.75DC power supply 12/24VFeed pressure(Mpa) 0~0.4(low) 0~4(high)Transfer Pressure Gauge for VE Pump (Mpa) 0-1.6Pressure Gauge for VE Pump (Mpa) 0-0.16Scope of rack bar stroke(mm)0~25Standard injectors ZS12SJ1Frequency ConverterDelta Height of principal axis center (mm)125

Main Function1.Measurement of each cylinder delivery at any speed2.Test point and interval angle of oil supply of injection pump.3.Checking and adjust the mechanical governor.4.Checking and adjusting the distributor pump.5.Experiment and adjusting of behavior of supercharging and compensatory6.Measurement of oil return of distributing pump7.Testing of the electromagnetic valve of distributor pump. (12V/24V)8.Measurement of the internal pressure of distributor pump.9.Checking of the advance angle of advance device. (on request)10.Checking the sealing of injection pump body11.Install auto-sucking oil tube to check oil supply pump (including VE pump.)
