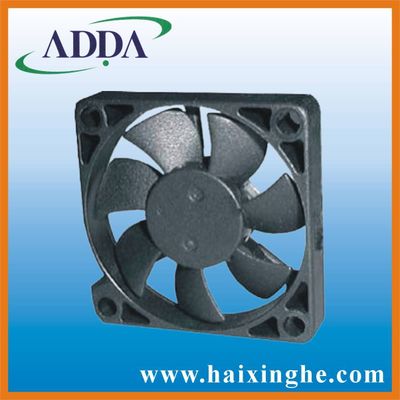

ADDA AD3506 axial cooling fan

ADDA AD3506 cooling fan General Specification

1. Electric Strength: 5mA max at 1500VAC for 1 min between lead wire and frame

2. Insulation Resistance: 100M ohm between lead wire and frame(DC 500V)

3. Life Expectancy(Ball bearing): 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

4. Life Expectancy(Hypro bearing): >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

5. Life Expectancy(Fluid Dynamic bearing): >60000hrs min at 40 degree C/L10 relative humidity 65%+/-20%

6. Operation Temperature: -10~80 degree C(+14~176 degree F)

7. Storage Temperature: -40~75 degree C(-40~167 degree F)

8. Protection: Motor protection and polarity protection

9. Lead wire: UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26

10. Pastic Material: Black PBT (UL94V-0) glass filled

11. Aluminum Material: high quality aluminum die-casting frame flatted with black paint

ADDA AD3506 cooling fan detailed specification:

1. frame size(mm): 35X35X06

u20222. bearing system type: 1B1S bearing,hypro bearing

u20223. rated voltage: 5V,12V

u20224. rated speed: 6500~9500RPM

u20225. maxiam air flow: 4.9CFM

u20226. maxiam pressure: 3.81mmAq

u20227. maxiam noise: 35dBA

u20228. function: by impedance,by IC, by IC with FG

u20229. safety approvals: CE,TUV

applicable in communication equipment, power supplies, medical equipment,



safety equipment, industry control computers, apparatus, and vehicles etc.
