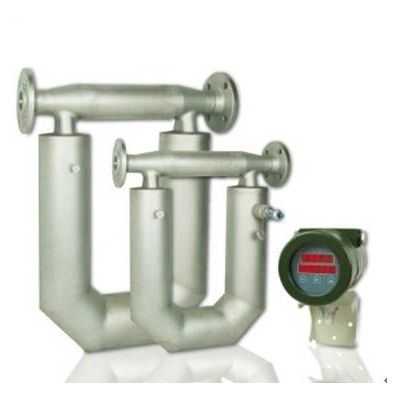

Coriolis Mass Flow Meter

Metern coriolis mass flow meter (MTCMF) is a new type flow meter which is designed according to Micro Motion and Coriolis principle. This kind of new flow meter can measure the fluid directly in a sealed pipeline.

1. Measuring fluid flow rate directly (It is significant to the energy measurement and chemical reaction during the producing detection)

2. High Measurement accuracy: (0.1%-0.5%)

3. Wide Application (Besides general fluid measurement, other industrial medium which is hard to be measured by general flow meters also can be measured, such as Non-Newtonian fluid and Slurries etc.)

4. Low Installation Requirement: (there is no requirement for straight pipe upstream or downstream) Reliability, low maintenance rate.

The MTCMF mass flow meter can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.

Chemical: containing chemical reaction system

Petroleum: moisture content analysis

Lipids: including vegetable oils, animal fats and other oils

Pharmaceutical

Painting

Paper making

Textile printing and dyeing

Fuel: crude oil, heavy oil, coal slurry, lubricant and other fuels.

Food: gas dissolving beverage, health drink and other liquid.

Transportation: pipeline liquid measurement.

1.FT51-series Wall Mounting

FT51-series converter is a kind of wall mounting signal converters. It consists of MPU panel, signal adjustment board, safe grid, power panel, LCD displayer and keyboard, shell etc.

Converter offers vibration driving signal of the measuring vibration pipe, and detects the sensor signal changing with the flow. It also can display the flow data and output standard connection signal. The converter can display: mass flow, mass gross, volume flow, total volume, density, temperature, etc.



Technical Parameters

1)Power supply: 220VACu00b110% 50Hz or 24V DCu00b15%

Power: <=28W

2)Working condition:

Temperature:-10C~50C

Relative humidity: <=95%(noncondensable)

No corrosive and flammable gas

3)Protection Grade: IP65

4)Instrument display: instantaneous flow, accumulate flow, density, temperature

5)Output signal: 0~10KHz pulse signal. Accuracy: 0.05%

4~20mADC current signal, Accuracy: 0.25%

RS485 communication output signal

6)The dimension: 251x203x92



FT51-series Wall Mounting



2.FT52 Series on-site Type

FT52 series converter is a kind of a site-type signal converter instrument. It consists of basic converter and display unit. It should be installed inside of the housing with the function of explosion-proof. Besides, FT52 series converter is used together with Coriolis mass flow meter on site. It has the function of sensor vibration pipe driver, phase signal detection, flow operation displayer, flow accumulation, long-distance signal output and so on, should always be mounted with the Coriolis flow meter sensor on site.



Technical Parameters

1)Power supply: 24V DCu00b15% (220V ACu00b110% 50Hz) Power: <=7W

2)Ambient temperature:-40C~70C

3)Relative humidity: <=95%

4)Explosion-proof: EX d(ia)IICT6Gb

5)Protection grade: IP65

6)Instrument display: instantaneous flow, accumulate flow, density

7)Output signal: 0~5KHz 0~8KHz 0~10KHz pulse signal. Accuracy: 0.05%

4~20mA DC current signal, Accuracy: 0.1%

RS485 communication output signal

8)The dimension: 125xH180 Electrical interface: M20x1.5



FT52 Series on-site Type
