XENON HID KITS

【Product Name 】: HID XENON KIT/ Auto HID Kit



【Product Model 】: HID KIT / Single Beam-9006/ HB4



【Product Type 】: 900 Series/ HB Series



【Product Brand 】: UGGu00b7V / Shengda



【Manufacturer 】: Shengda Corpu2014Universal God Group Ltd.



【Official Website】: http://www.hidugg.com/enindex.htm



【Sales Hotline 】: 0086-2089716563







HID KIT Technical Parameter:



1. Features



1) Input Voltage Range: 8.5V-18V;



2) Start Votage Range: 9V-17V;



3) Max. Start Voltage: 23Kv;



4) Input Current: 3.2A+-0.3A;



5) Output Power: 35W+-3W;



6) HID Efficiency: 98.68%, 3,500 LM;



7) Working Temperature: -40 ~ +105 ℃;



8) Life-Span: 2,600 hours;



9) Startup Time: can reach 20% of the standard brightness within 1 second; can reach 90% of the standard brightness within 4 seconds ;



10) Auto Cut-off: once there is a short circuit or open circuit, the ballast will stop working automatically ;



11) Protection Voltage: when the voltage exceed 18V, the ballast will stop working automatically, and make the output power below 45W to protect the ballast and bulb from damage. When the voltage is 8V, the ballast still can work normally. But when the voltage is below 8V, the ballast will stop to protect the ballast from damage;



12) Reverse Polarity Protection: the ballast will stop working automatically when a reverse polarity happens.







2. Specifications



1) Available Voltage and Wattage:



12V 35W, 12V 40W, 12V 45W, 12V 50W, 12V 55W



24V 35W, 24V 40W, 24V 45W, 24V 50W, 24V 55W







2) Lamp Items available:



Single beam Lamp: H1, H3, H3C, H4-1, H7, H8, H9, H10, H11, H13-1, 9004-1(HB1), 9005(HB3), 9006(HB4), 9007-1(HB5),D1C(D1S/D1R), D2C(D2S/D2R), D4, 880/881



Hi/Lo Lamp (Xenon L + Halogen H): H4-2, H13-2, 9004-2, 9007-2



Hi/Lo Telescopic Lamp: H4-3, H13-3, 9004-3, 9007-3



Hi/Lo Bi-xenon Lamp: H4-4, H13-4, 9004-4, 9007-4







3) Color Temperature:



3000K-----Golden Yellow 4300K-----Extreme White



6000K-----Diamond White 8000K-----Iceberg Blue



10000K----Brilliant Blue 12000K---Violet Purple







4) Special HID Light Effect:



HH--Golden-Yellow, TB--Sky bule, ZB--Dark Bule, QB--Cyanine,



HJ--Green, HP--Purple, HR--Pink, BP--Bright Purple

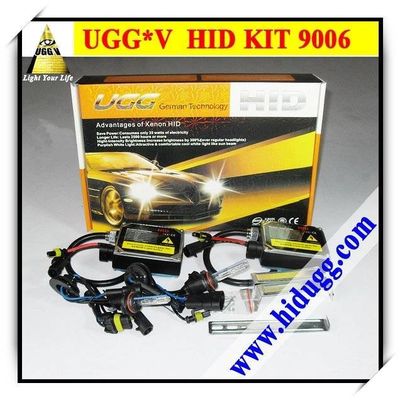

3. Product and Accessories List



1) Two Xenon HID Bulbs (Buyer chooses Bulb type and Color Temperature)



2) Two Ballasts



3) Two supports of Ballast



4) Eight fixation buckles of wire & Some Screws



5) Standard Export Package



6) Warranty Card







4. Pricing & Delivery Terms



1) Promotion: Wholesale Price to attract more buyer



2) Brand Name: UGGu00b7V



3) Place of origin: Guangzhou/China



4) Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram



5) FOB Port: Guangzhou / China

1.UV cut glas for headlight prodtection, by introducing German technology.

2.Luminous Flux is 3,200 luminanc.

3.Hight Brightness is 3 times of luminous flux as halogen lamps.

4.Long Life time is 3,000 hours.

5.Lower Power consumption is in 35W.

6.100% compatible with original halogen system.

7.Waterproof, Dust resistant, Anti-vibration and Higher Safety.

8.Can-bus solution system.

9006

ANY CAR FOR 9006
