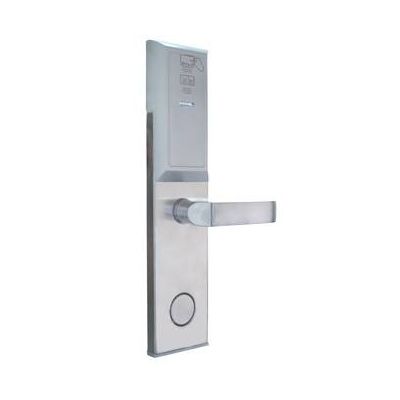

RF lock

1,Stainless steel panel

2, RFID MIFARE 1 technology,100,000 times write life for keycard, contactless reading keycard

3, EURO mortise

4, Powered by AA battery,easy replace new

5, Openings 20,000 times for one new battery pack

6,Mifare 1K S50 card required

7, Audit trail records the latest 800 lock transactions.

8,Low Battery Voltage warning(beep and red light)

9, Do not disturb(DND)function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light Make your management of rooms easily.

Power: LR6 (AA)battery x 4pcs

Low power alarm voltage:4.8V

Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)

Card support: MIFARE 1 S50 plus S70

Working Distance: 45mm Max

Working Humidity: 15~85%RH

Static current: < 30uA

Working current: < 150mA

Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID

Software: EKING Hotel lock system

Gross Weight: 3.2 KG

Package: 10pcs/Carton at 74.0X42.0X32.0CM

Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike

(no battery included, no card)
