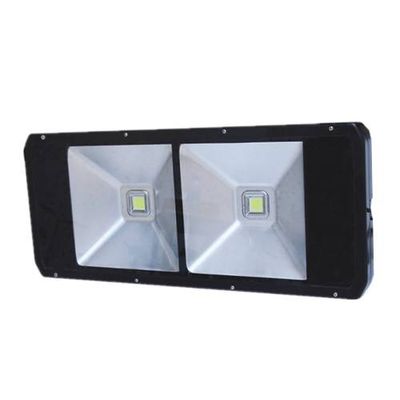

high power 200w led tunnel lighting

1.Led tunnel light

2.Bridgelux chip

3.Die-casting aluminum and Temepered glass

4.3 years warranty

5.CE RoHS TUV approval



Specification



Model : SW-TL695-C200W

Input Voltage: AC85-265V

Power: 200w

Luminous Flux: 22000-24000lm

Led chip: Bridgelux

IP Degree: IP65

Beam Angle: 120u00b0

Power Factor: >0.95

CRI: >78

Color Temperature: 2700-7000k

Led Driver: SUNWAY

Working temperature:-40~50

Lifespan: >50,000hrs

Material: Die-casting Aluminum and Tempered glass

Warranty: 3 years



Certificates: CE & RoHS & TUV

1. Integrated single LED bridgelux LED with constant current.



2. Heat-resistant gas-tight silicone rubber seal, .High pressure die casting aluminum housing for corrosion resistance., pure light color and no ghosting;



3. Low Voltage working, safe and reliable, meeting different environment;



4. No air pollution,no heat radiation, hydrargyrum and any other contamination;



5. The LEDs closely connected to the crust ensures life-span effectively.

Model : SW-TL695-C200W

Input Voltage: AC85-265V

Power: 200w

Luminous Flux: 22000-24000lm

Led chip: Bridgelux

IP Degree: IP65

Beam Angle: 120u00b0

Power Factor: >0.95

CRI: >78

Color Temperature: 2700-7000k

Led Driver: SUNWAY

Working temperature:-40~50

Lifespan: >50,000hrs

Material: Die-casting Aluminum and Tempered glass

Warranty: 3 years



Certificates: CE & RoHS & TUV

Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse, Supermarket, Shopping Mall, Exhibition Hall, Gas Station, Highway Toll Station, Road, Large Store, Freezer Room, Cold Store, Building & Dock etc. other places need outdoor lighting.

Attention



1. In order to make sure the light can work safety and stability, the ground line should be connected the earth.



2. When connecting the wires please turn off the power, and check whether the wires are connected correctly. Never connect the wires in opposite way, or the power should not be turned on.



3. Please keeping the trip bolt being fastening and reliable, in case of the light fall down of looseness.



4. The voltage can't over AC85-265V, or the damage can't be repaired.



5. Please keep the hook which has screw thread into the e-box tapping hole, in sure the hook is tightened, using M4 screw hook to fasten the coin slot screw to prevent the looseness of the screws.



6. When finishing connecting the wires, please using the insulation gummed tape to convolve the wires, confirm the insulation and solve the waterproof problem.
