High Efficiency LED Street Light Fixture Professional Manufactuer with CE, RoHS 28W,56W,112W,168W

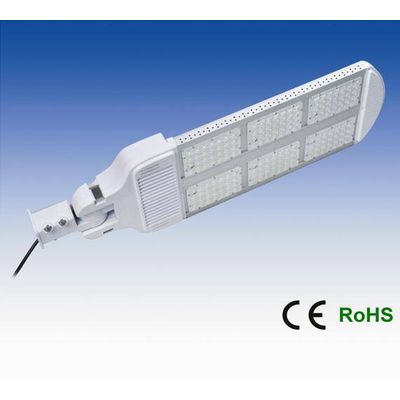

LED street light - Features: 1, Unique optical design, high light transmission. 2, Second-generation thermal-dissipation design, with more air convection cooling holes, improves heat dissipation effect, fashionable and exquisite appearance. 3, intelligently controlling time and temperature on circuit ensure LED work reliably. 4, Work with photocell control system, innovative simple and practical. 5, Built-in high efficiency switching power supplies, AC wide input voltage, good univer performance. 6, In line with CE and RoHS.

Model Number: ZH-L4W168 Input Voltage: AC85V---265V, DC12V OR DC24V Frequency Range: 50Hz Power Factor(PF): ≥ 0.9 Power Efficiency: ≥ 90% LED Consumption: 168W Power Supply Consumption: 180W LED Luminous EfficiencyLED: ≥ 85Lm/w LED Initial Flux: 14280Lm LED Maintain Flux: 12750Lm(5200hours "zero"weaken) Lamp Output Flux: 12000Lm Lamp's Efficiency ( %): 95% Illumination ( E ): 8m-10m(height) Effective Illuminated Area 30meters(landscape orientation); 15meters(portrait) Color Temperature warm White: 3000K-4000K Pure white: 5000K-6000K cold white: 6000K-8000K Color Index(CRI): Ra≥ 80 Light Distribution Curve / Beam Pattern: Batty Shape The Highest Light Intensity Angle: 20 Beam Angle The Horizontal Axis: 140, The Vertical Axis: Adjustable to any angle Junction Temperature ( Tj ): ≤ 70 System Resistance ( Rja ): 65%-70% Working Temperature: -20%-+50% Working Humidity: 10%-90% Still be lighting even under the water. Storage Temperature: ≤ 50 Working Life: ≥ 50000 Light Body & Lampshade Material: Aluminium alloy Lamp Base: 60mm Size: 64.3x32x10mm Net Weight (g): 12kg

Used in the highway, fast roads, main roads, sub-roads, squares and playground lighting.

Warranty:2years
