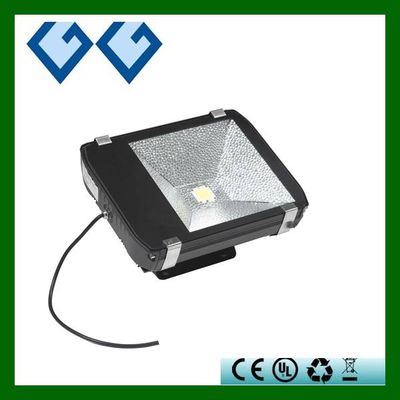

80w outdoor led flood light tunnel light with ce&rohs ip65

led tunnel light,led flood light

meanwell driver

bridgelux chip

80lm/w

※Internationally accepted Input voltage range：85V～265Vac/47～63Hz

※Constant current power supply with efficency of 82%,and long life and high accuracy.

※IP65

※Imported high luminous efficacy LED chip,patented integrated high power LED packaging,luminous efficacy can reach 100lumens/w

※Housing and heatsinks are integrated as one, anti-static powder painted on the surface,anti-sepsis processed,pure aluminum reflector with 95% reflective rate, super-white toughened glass of 0.4mm thick.

※Insulation rate： Class Ⅱ

※International EMC Passed

※Directives executed:IEC 60598,IEC 61000-3-2:2005

ITEMFL05-80W/1A-W-BFL05-80W/2D-W-B

Input Voltage Range85-265V～24Vdc

Frequency Range47Hz～63Hz-

Inrush Current40A@ 220Vac Input ；Cold start

Power Factor0.95

Lamp Input Fuse TypeT3.15A 250Vac

LED VoltageDC30～36V

The Qu2019ty of led1 pc

Led Consumption78W

Lamp Consumption88W

Led Luminous Efficiency90 Lm/W

Led Initial Flux6300 Lm

Color TemperatureDetail information refer to above LED parameters table

Color Rendering IndexRa＞75

Beam angle110u00b0

LED Junction Temperature 80℃

Working Temperature-40℃ ～ +55℃

Net weight7.8 Kg

Working Life-span50000H

Power lineVDE HR07G 1.00mm

workshop,high way checking station, square,wharehouse,advertisement board,parking lot
