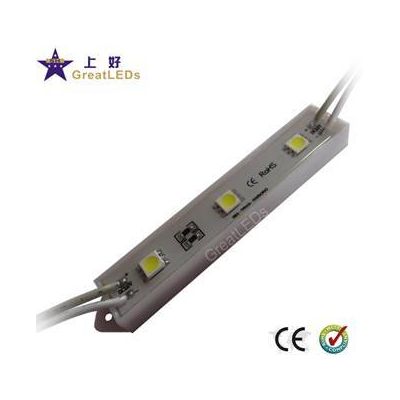

GFT7813-3X5050

Product Description

Features

1 SMD LED module, Super flux(Piranha) LED module, and Strawhat(DIP)LED module version available

2 Adop superior LED chips: Higher brightness and Low luminance decay(decay rate: 3% about 1000H)

3 With constant current IC on each module, LED can be better protected against overvoltage and overcurrent, much more durable

4 Broad viewing angle of more than 120u00b0

5 IP68 rated for outdoor use and completely sealed to be environmentally robust

6 Small and flexible to fit into small and hard-to-illuminate spaces

7 Simple, fast and reliable installation with 3M adhesive tape and with mounting holes for easy mounting

8 Longer useful life - potential to exceed 5 years

9 Available in 6 colors: Red, Green, Blue, Yellow, Pink and White

10 Safe operation: DC12V low voltage source and non-flammable material

11 Reduced energy consumption, actually consumes 40% less power compare to similar neon system

12 Operating temperature range of -20 Degree to 65 Degree

13 Strict quality control-CE/RoHS/SGS approved



Application

1 Electronic signs

2 Outdoor decoration

3 Reverse lighting

4 Outdoor channel letter

5 Automotive lighting

6 Festival decoration

7 Advertisement light-box

8 Advertising sign back lighting

9 Commercial LED lighting project

10 Landscape and stage decoration

Features

1 SMD LED module, Super flux(Piranha) LED module, and Strawhat(DIP)LED module version available

2 Adop superior LED chips: Higher brightness and Low luminance decay(decay rate: 3% about 1000H)

3 With constant current IC on each module, LED can be better protected against overvoltage and overcurrent, much more durable

4 Broad viewing angle of more than 120u00b0

5 IP68 rated for outdoor use and completely sealed to be environmentally robust

6 Small and flexible to fit into small and hard-to-illuminate spaces

7 Simple, fast and reliable installation with 3M adhesive tape and with mounting holes for easy mounting

8 Longer useful life - potential to exceed 5 years

9 Available in 6 colors: Red, Green, Blue, Yellow, Pink and White

10 Safe operation: DC12V low voltage source and non-flammable material

11 Reduced energy consumption, actually consumes 40% less power compare to similar neon system

12 Operating temperature range of -20 Degree to 65 Degree

13 Strict quality control-CE/RoHS/SGS approved

Dimension 78(l)*13(W)*4(H)mm

LED No 3 pcs 5050 SMD LED Beam angle 150Degree

Voltage Input DC12V

Current 60mA 60mA 60mA 60mA 60mA

Watts 0.72 0.72 0.72 0.72 0.72

Lumen 48~60 12~18 48~60 12~18 12~18

Color White Blue Green Yellow Red

IP IP68 The PCB be covered by resin.

Net Weight(g) 2.5g/pc. 51g/20pcs

Part No GFT7813-3W5050 GFT7813-3B5050 GFT7813-3G5050 GFT7813-3Y5050 GFT7813-3R5050

Application

1 Electronic signs

2 Outdoor decoration

3 Reverse lighting

4 Outdoor channel letter

5 Automotive lighting

6 Festival decoration

7 Advertisement light-box

8 Advertising sign back lighting

9 Commercial LED lighting project

10 Landscape and stage decoration
