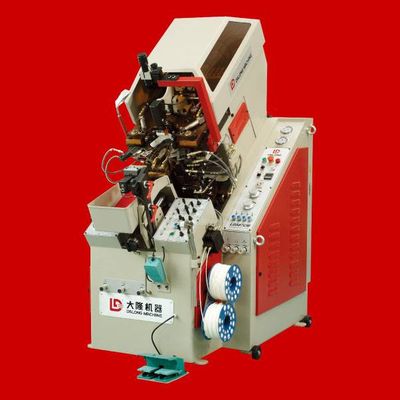

LD-587CM 9-Pincer Hydraulic Toe Lasting Machine (With Hot Melt)

Model: LD-587CM

Name: 9-Pincer Hydraulic Toe Lasting Machine (With Hot Melt)



Capacity: 1200Pairs/8h

Power: 1.5kw

Hydraulic pressure: 5MPa

Heating power: 1.2kw

N.W.: 1200kg

Dimension(LWH): 1700x980x1950mm

O LD-587CM This machine sets up a new model for new generation toe lasting machine. With the basic fitting device of any kind of toe lasting machine, and with economic automatic hot melt cementing system. It also keeps the unique design method of our company. It is the best tools for shoes-making up-grade.

O The design of free calibration of toe head pressing stroke supplies surely very stable pressing force, unaffected entirely by oil temperature of different pressure.

O It has the pincers rapid installing and releasing structure. The fifth pincer, which adopts the new rotating technology structure, makes the upper more attached to the last.

O With the pincers loose and tighten separately function.

O All-around forming band and specially tracked wipers ensure uppers more evenly and closely attached to lasts after lasting. The vamp highly attached after lasting. Save more labor cost and environmental protection.

O With the automatic toe lasting. The vamp highly attached after lasting. Save more labor cost and environmental protection.

O Pincer-plate's shoe size adjusting uses synchronous moving horizontal and independently at one side. Faster and accurately.
