Sale Aluminum and copper separator for air condition radiator 0086-15238020668

We are specialize in separating Air Condition Radiator, and for its study and production. The air condition radiator separators made by our factory are no noise, no pollution, producing safe, and so on.
Application Scopes:
It can separate all kinds of used radiators, coppers, and aluminums.
Main Features:

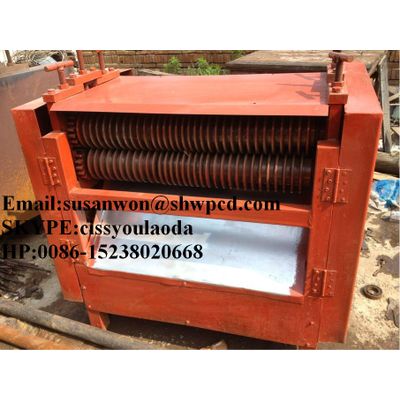

This kind of machine is composed of motor, reduction box, rack, press roller, blade, and pinch roller and so on. The copper and aluminum of the radiator are separated by the cut of the blade. After separated, the copper pipe is stay the same, and the aluminum is irregular pieces.
Working Principle:
After starting motor, the vee belt drives the compression roller, pinch roller, and blade to rotate through the reduction box. The raw material is compacted and sent to the fly-cutter blade by pinch roller. Then, the radiator is cut up by the fly-cutter blade, the copper pipe is separated, and the aluminum scattered network is cut up.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
It is easily for operate, high quality and high performance. It is use for separating the outside aluminium foil and the inside copper pipe of wasted air conditioning radiator. Each set of this kind of machine just can separate two different specification radiators. Because the interval width of the copper pipe are different in the radiator, so we need you can offer us the width of the copper pipe of the radiator. In China, the width of the radiator copper pipe is 21MM, 25MM, and 19MM. Besides, the thickness is one layer and two layer. If the thickness is 3 to 4 layer, then the Band Saw Machine is necessary.

Machine size:1500*1200*1200 mm
Machine weight:1100 kg
Motor: 5.5 kw
Capacity: 300 kg/h
