SLITTING MACHINE

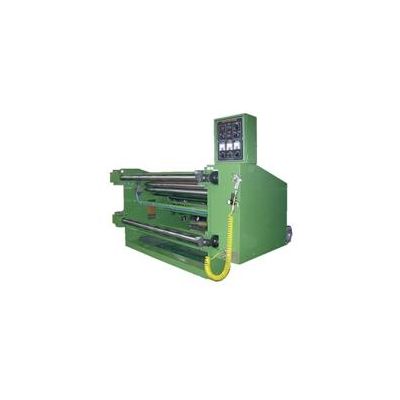

SLITTING MACHINE for Insulation paper

Description UPI offers two models of Slitting machines: the US1300E and US1300F. We also offer customer-tailored models. The US1300 model is economical machine and US1300F is High speed machine

The machine is designed to slit insulation paper for transformer. -Pneumatic expandable insulation paper de

-coiler. -Pneumatic expandable insulation paper Re-coilers. -Foil Tension system with adjustable powder brake

and clutch. -Blade type paper slitting unit. -Adjustable foil tension system.

-Continuous slitting of coil insulation paper

Knife Blade

Width of material 1300mm

Thickness 0.1 to 0.25

Number of slits 10

Inside diameter of material 70/76 mm

Outside diameter of material 400 mm

Inside diameter of re-coil 70/76 mm

Line speed 30m /min (max)

Drive Frequency converter , 2.2Kw AC -motor
