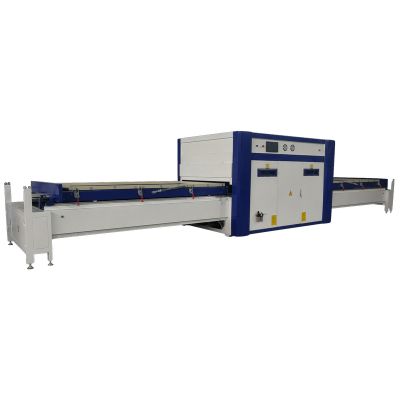

PLC TM2480E MDF PVC woodworking vacuum membrane press machine
This machine is fully automatic vacuum coating equipment, can be a variety of high-grade PVC , transfer film, leather furniture surface coating of paste.The high degree of automation and simple operation, processing time, working temperature, vacuum value , all automatic control, to ensure product quality, improve production efficiency.
FEATURES:
TM2480E is automatic operation by Computer. The operation is easy and efficient. It is suitable for covering PVC film on the surfaces of all kinds of plate type furniture, sound boxes and ornamental materials etc. Using the special hot-press gum. Particularly it is used to covering on concave and convex line and various shape edge surface. It has advantage of anti-fire, waterproof, acid-proof, alkali-proof, especially for indoors decoration, no pollution, no peculiar smell, quick installment and beautiful appearance. It is the ideal equipment in interior design.
Advantages
The device is in the old veneer positive and negative pressure device, based on the researchmade according to customer demand, the device host using patent structure, low failure rate. Heating by elelctric heating, oil soaking, good heating effect. The device is the first choice for high-end paint doors, cabinets and other high-gloss PVC products.
RANGE OF PROCESSING:
Paste PVC on furniture, speakers, cabinets, relief doors, decoration panels for walls and other abnormal decoration shapes (wood skin is also acceptable, hot transfer)
TECHNICAL PARANMETERS
Device dimension | 10800mm*1960mm*2000mm |
Table size | 2550mm*1300mm*50mm |
Device size | 25500MM*1980MM*2000MM |
Working size | 2550mm*1300mm*50mm |
Working speed | 4min/piece |
Max processing height | 100mm |
Machine wight | 4000kg |
Suction pressure | 23.2kw |
The total power | 42.7kw |
Average power | 10kw |
Vacuum pump | Chinese famous vacuum pump |
Control system | PLC or computer |
Temperature control | 0--330 |
Heating system | Aluminum plate,stainless heating tube |
Function and characteristics
1 Stable performance
The whole electrical parts are all imported original,low-voltage electrical parts are Schneider brand, and its low-voltage miniature circuit breakers are Schneider original products. AC contactor’s cost is fifteen times higher than domestic parts but its life is three million times.
The controller’s PLC is DELTA brand, few wiring and easy controlling, so fault rate is much lower.
Vacuum pump supplier is the OEM of European partners, its main technical parameter are already beyond Germany products. Easy maintenance and high vacuum, air flues connecting working table are chrome-plated seamless steel tube, stable running and noiseless.
The working table is connected by bolts, easy dismounting and cleaning. PVC pressing frame adopts 6061T6 aluminum alloy extrusions and it is not hot after long time working. Table running adopts chain of transmission and Frequency control, with low fault rate, smoothly running keep work-piece no shifting.
2.High production efficiency
Aluminum alloy heating fast, and three meters long working table, 150 square meters PVC paint-free door of cabinet could be finished daily.
3.Saving energy
Thicker heating and thermal insulation structure for main heating oven, it will save electricity 30% than before.
