section bending machine

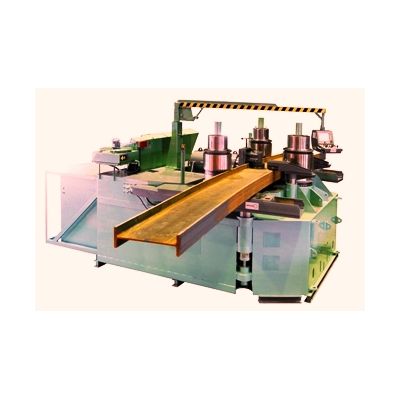

HAVERER GROUP produce section bending machines. Capacities available are amongst the largest in the world for this type of equipment: from 40 x 40 millimetre angle or 40 x 8 millimetre flat bar.

Each model in the range is able to pre-bend material at both ends, using three driven rolls and SKF roller bearings in all journals.

Most models are standard with infinitely variable rolling and adjustment speed (each of which is electronically controlled from the portable control panel). An optional six directional hydraulic guide rolls assure the operator of consistent results every time.

All Haverer Group section bending machines have three-roll drive to minimise the risk of slipping, hydraulic drive with infinitely variable speed control except for the smallest machines, hydraulic adjustment of the lower roll, and standard rolls for flat bars, angle bars, T-bars and square bars.
Specification:


　
MACHINE TYPE
HG-16
HG-30
HG-45
HG-75
HG-100
HG-140
HG-180
HG-260
HG-320
HG-400
HG-500
HG-780
HG-1000

Bending modulus
16
30
45
75
100
140
180
260
320
400
500
780
1000

Bend Speed(m/min)
5
5
5
5
5
5
4
4
4
4
4
3.5
3.5

Material Yield (Mpa)
δs = 250

angle steel
　
Max Section (mm)
70x8
80x8
90x10
100x10
120x12
140x16
150x16
160x16
180x14
200x18
200x20
200x22
200x25

Bend Radius(min)
1000
1200
1500
2000
2500
2400
2600
2600
3600
3600
4000
5000
6000


Max Section (mm)
80x8
900x10
100x10
120x12
140x16
150x16
160x16
250x25
200x18
200x24
250x25
250x28
250x30

Bend Radius(min)
1000
1100
1300
1600
1800
2200
2000
2500
3600
3600
4000
6000
8000

channel steel

Max Section (mm)
12
16
20
25
28
30
32
36
40
45
50
55
60

Bend Radius(min)
800
800
1000
1100
1700
1200
1500
1800
2000
2000
2400
3000
4000


Max Section (mm)
12
16
20
25
28
30
32
36
40
45
50
55
60

Bend Radius(min)
900
1000
1150
1600
1700
1700
1800
1800
2000
2000
2400
3000
4000

flat steel

Max Section (mm)
75x16
90x20
100x25
110x40
120x40
150x40
180x30
190x40
190x50
200x50
200x60
250x70
300x70

Bend Radius(min)
760
800
1000
1100
1300
1500
2000
2000
2400
2200
2500
2800
3200

steel rod

Max Section (mm)
52
62
75
85
90
100
1100
120
135
150
160
180
200

Bend Radius(min)
600
600
800
1000
1100
1200
1300
1350
1800
2000
2000
2200
2800

steel pipe

Max Section (mm)
76x4.5
89x5
89x8
114x5
159x5
168x6
168x8
219x8
245x8
273x8
323x6
355x7
406x7

Bend Radius(min)
750
900
900
1200
2000
2000
2000
3500
3000
3500
4200
5000
5500

square pipe

Max Section (mm)
60x4
70x4
80x6
90x8
100x10
125x6
140x10
150x10
165x10
180x12
200x12
250x12
300x10

Bend Radius(min)
900
1000
1200
1600
2000
2500
3000
3000
3500
3500
5000
8000
12000

H type

Max Section (mm)
__
__
__
10
12
14
16
18
20
22
25
28
32

Bend Radius(min)
__
__
__
2000
2500
3000
3500
4000
5000
8000 10000 12000 16000
