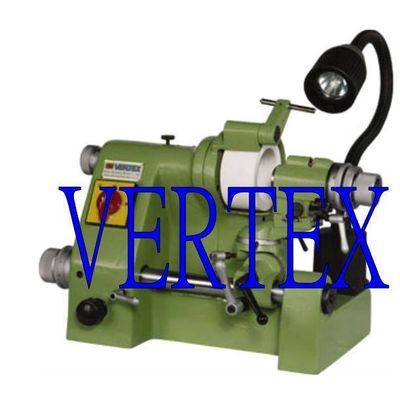

VERTEX U2 UNIVERSAL TOOL CUTTER GRINDER

U2 grinder,Universal Cutter Grinder U2

ORDER NO. U2 CODE NO. 1022-001



For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiused cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angel or shape can be obtained, free 3600 or 100 rotation



Technical Data

Max. Collet capacity u00d818mmMax. Grinding dia. u00d825mm

Taper angle 0˚- 180˚

Relief angle 0˚- 45˚

Negative angel 0˚- 26˚

Grinding spindle 3600 r.p.m.

Cup grinding wheel 100x50x20mm

Motor 1/3Hp 220V50/60Hz,

please notify volt & phase

Net weight 45kgs

G.W.: 60kgs



Machine dimensions (L x W x H ) 45x40x35cm

Packing dimensions (L x W x H ) 55x45x47cm



Standard Accessory Included

1. Wheel dresser with diamond...1pc

2. Wheel flange (mounted)....1pc

3. Grinding wheel.........1pc

4. Collect u00d84,6,8,10,12mm....5pc

5. Aligning flinger........1pc

6. Drive belt (U2-B)......1pc

7. Lock pin...........1pc

8. Tools.............1set



Optional Accessory

1. Twist drill grinding attachment U2-T

2. END mail grinding attachment U2-E

3. Lathe tool grinding attachment U2-L

4. Grinding wheel balancing stand LBS-100 CODE NO.2014-010
