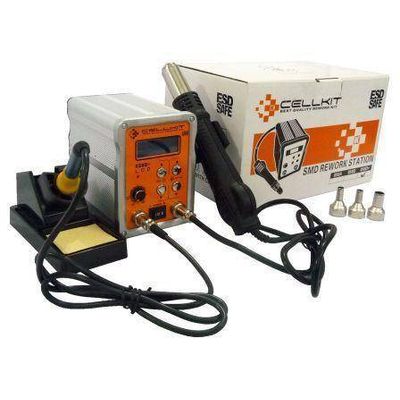

Smd Rework Station 2 in 1 Celkit 858D+ LCD

A unique ESD SAFE design ,provides extra safety for sensitive components, LCD display, combination of hot air rework station and soldering iron, The hot air gun can be used for easily removing and soldering various devices such as QFP,SOP,PLCC,SOJ,CHIPS, the soldering iron is mainly for soldering. It is easy to operate,user-friendly,and greatly space-saving.This machine is engineered to meet the demanding needs of today's electronic industry, technicians, service/repair and assembly rework.

- ESD Safe design,compact size and space-saving.

-LCD display for soldering iron ,hot air temperature and air flow

-One control switch for either hot air gun or soldering iron by switching left or right selection based on work requirement.

-Both soldering iron and hot air handle can be unpluged or pluged easily ,save maintenance cost and transportation expense

-It has button to control hot air flow, temperature, and a knob to control soldering iron temperature.

-High quality ceramic heating element rises the iron temperature rapidly in 3 second.

-Hot air gun handheld equipped with magnetic sensors .when handle picked-up from bracket, system will

start to work.when it put back at bracket,the system will automatically standby . It achieves 60%+ energy

save and high safety. it is convenient for real-time operation.

-System also has cooling air function that significantly extends the use of heating element and effectively protects hot air gun.

- Rapid heating and the temperature is not affected by air volume. extremely low noise and highly durable.

-Hot air nozzle can be used for soldering and desoldering. comes with 2 focus hood 8mm,12mm

-Warranty: 1 year parts and labor.

General specification

Current voltage(AC);220 + 10%

Current overload protection : >= 4A

Hot air rework

Power consumption:550 W

Hot Air temperature: 100-450 C, adjustable

Output airflow: 0.3-100L/min, adjustable

Pump power：90W

Heater: 250W metal

Heating element : carbon worm wheel direct to current machine

Soldering station

Power consumption:40 W

Output Voltage (AC) : 22V

soldering Temperature : 200 - 480 C,Adjustable

Heating element : Ceramic Heater

Rework station 1

Soldering Iron 1

Clean Sponge 1

Iron holder 1

Hot air gun 1

Handle bracket 1

Nozzle focus hood 8mm x 2,12mm x 1

User manual 1

Warranty card 1

Packaging size:

Dimension:28*19*17cm

Weight :2.75 kg



Carton Size:

Box/Ctn：12

Dimension:

Weight: 33 Kg
