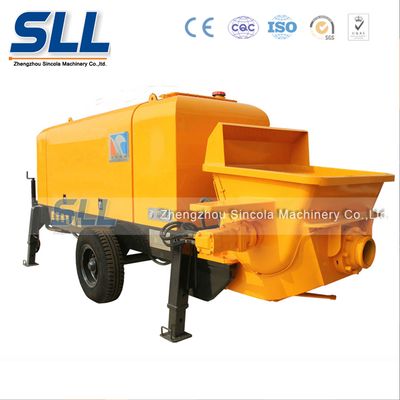

Automatic remote control for concrete pump

Product Description

Introduction of remote control for concrete pump

BS15-8-22 applied in high-rise buildings of mortar conveying, and used for tunnel and underground
engineering, structures of tunnel lining surface spraying, reinforcing reinforcement construction. Can realize long-distance and high level pumping mortar, fine stone concrete and foam concrete.

Parameter of remote control for concrete pump

Features of remote control for concrete pump

1. Distributing valve adopts advanced S tube valve, sealing is good. Glasses plate cutting and floating ring using hard alloy, high strength abrasion resistance, long service life, easy to change, the cutting ring mechanism adopts automatic compensation clearance.
2. Control method with electric - hydraulic joint control, has a perfect electrical and hydraulic overload
protection and instrument display system; With functions of anti-plump operation; Working condition of
pumping speed can be adjusted, which can meet various needs.
3. Centralized lubrication system is controlled by program automatic start-stop and operation time, effectively extend the service life of rotating parts.
4. Electrical component protection grade reaches IP65, PLC control, reliable operation, simple control circuit, electrical box is equipped with a wireless remote control.
5. Main sealers adopt PARKER quality seal.

remote control for concrete pump Advantage

1. Adopting advanced S tube valve to change, meet the need of the transportation of fine stone concrete.
2. The glasses plate and cutting ring are made of high hardness wear-resistant alloy material, and the service life is longer.
3. High export pressure can meet the requirements of high rise building and long distance construction.
4. Hydraulic oil cooling using water cooling system, the cooling effect is good, easy to use.
5. With anti pump function, minimize the pipeline blockage.
6.Equipped with manual centralized lubrication system, ensure the life of the rotating parts.
7.Electrical box equipped with wired remote control handle, easy to operate.

The standard configuration
Variable diameter tube:125A-80A×1M
Conveying pipe:80A×1M×2 80A×2M×2 80A×3M×32
Bend pipe:R500 80A×900×3 R275 80A×450×2
High pressure rubber hose:80A×6M×2
The hydraulic oil anti-wear:46#×130kg
The pipe clamp aprons:80A×46 125A×2
