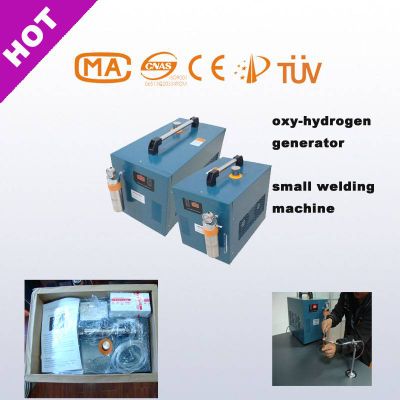

Oxy-hydrogen Flame Ampoules Sealing Machine

(No gas cylinder, just water)



Operating Instruction



No.343, Lushan South Rd., Yuelu District, Changsha,Hunan,China



1.Technology overview of Oxyhydrogen Flame Ampoule Sealing Machine

Traditional ampoule sealing machine adopts liquid gas as fuel and air as combustion supporting gas.The flame produced by it contains carbon dioxide, carbon monoxide and nitrogen compounds,these substances will impact on the quality of pharmaceuticals and bring security hidden danger to working environment. Okay Energy Equipment Co.,Ltd adopts oxyhydrogen generator to seal the ampoules as scientific research personnel required, and we have succeeded.

Oxyhydrogen Flame Ampoule Sealing Machine technology adopts water as the medium to electrolyze water into H2 and O2, fire them to form oxyhydrogen flame. The temperature of Oxyhydrogen flame is as high as 2800 degrees so that it can seal the ampoules very fast. The quality and speed of Oxyhydrogen Flame ampoule sealing method is higher than Liquid gas's.





2. Comparison of Technology overview between Oxyhydrogen Flame Ampoule Sealing Machine and Traditional Liquid Gas Ampoule Sealing Machine

Compared with Traditional Liquid gas Ampoule Sealing Machine technology overview, Oxyhydrogen Flame Ampoule Sealing Machine's has the following advantages:

1) Safety: Oxyhydrogen Flame Ampoule Sealing Machine just uses water and electricity, no gas bottle, no hydrogen gas storage, no leakage and explosive danger.

2)Convenience: Oxyhydrogen Flame Ampoule Sealing Machine can work just with water and electricity, every litre water can be used for 7~8 hours. But liquid gas bottle needs to be moved by man to change it, so it is very inconvenient.

3) Cleanliness: Oxyhydrogen combustion just produces little water vapour, so there is no harm to the pharmaceuticals. But liquid gas combustion produces carbon dioxide, carbon monoxide and nitrogen compounds which will impact on the quality of pharmaceuticals.

4) High Efficiency: The speed of Oxyhydrogen Flame ampoule sealing method is higher than Liquid gas's.

3. Composition of Oxyhydrogen Flame Ampoule Sealing Machine

Oxyhydrogen Flame Ampoule Sealing Machine: 1 set

Flame Torch: 1 suit

Holder: 1 piece



4. Operation of Oxyhydrogen Flame Ampoule Sealing Machine

1) To install the Oxyhydrogen Generator Flame Ampoule Sealing according to the operating instruction, then connect the pipeline as the above picture, adjust position up and down and start to work.

2) To open the Power Supply switch of Oxyhydrogen Generator Flame Ampoule Sealing, start to produce gas, when the air pressure rises to 0.1Mpa, you can open the torch valves to transport gas.



3) To use Lighter ignition to formed Oxyhydrogen Flame, can adjust flame size further through valves adjustment.

Remark: When firing, please don't let any part of the body be in front of the torch mouth. When lighter firing, body should be in the side of the torch to avoid firing your hands.



4) To use the tweezer to nip ampoule, the tautness of nipping should guarantee the ampoule not only won't come off, but also can rotate it with hand.



5) To put the ampoule nipped by tweezer in Oxyhydrogen Flame to heat and rotate it at the same time. When heating finished, pull up the tweezer, the process of sealing will be accomplished immediately. Please check the video as below carefully.



5. The Model No. of Okay Oxyhydrogen Flame Ampoule Sealing Machine

1) AS-200:Suitable for 1~10ml Ampoules, and 1~5ml is the best.

2) AS-300:Suitable for 1~20ml Ampoules.

Okay Oxyhydrogen Flame Ampoule Sealing Machine serves our customer by our perfect after-sales service system, meticulous Ampoule Sealing Machine training, rich Ampoule Sealing Machine video teaching data.

Oxyhydrogen Flame Ampoule Sealing Machine has won a good reputation from domestic and overseas customers because of its excellent performance.

Okay Oxyhydrogen Flame Ampoule Sealing Machine shows on our website www.okayenergy.cn , welcome to view.

1.Concentrated flame,short Preheating time

2.Small heat affected zone

3.No hang slag

4.Energy saving 30~50%

High Frequency Brown Gas Generator / Oxyhydrogen Generator / HHO Ggenerator OH1500-10000

Oxyhydrogen Generator/Metal Cutting/WeldingMachine consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. Oxyhydrogen Generator/Metal Cutting Machine is used for welding, cutting, polishing, brazing, glass processing and jewelry processing. Also can burst with other fuel together for heating.

1. Welding

(1) Jewelry Industry:



For welding kinds of chain and string which are made of platinum, gold, silver, copper, stainless steel, etc.



For mending tiny sand holes on jewelry casting.



For jewelry repairing (reforming, casting, welding).







(2) Electronic Industry:



For welding enameled wire, computer wire peeling, LED wafer, flame-treating circuit board,thermocouple andplatinum resistor leading wires.







(3) Medical Industry:



For denture welding.



For welding metal fittings and mending sand holes in dentistry.



No-carbon flame disinfection and glass seal.



(4) Laboratory:



For Welding of laboratory teaching, providing convenient, safe and clean oxy-hydrogen flame.







(5) Others:



Instrument welding, Air-condition copper pipe welding, Automobile exhaust pipe welding,Fishhook welding,Storage battery tinplate welding,lighting hardware weldingand etc.











2. Multi-functions application of Oxyhydrogen Generator/ Brown Gas Generator/ HHO Generator/Metal Cutting/ Welding Machine:



1.Carbon Steel Cutting of machine building industry,shipyard,steel structure processing plant.



2.Continuous casting slab cutting of Steel Plant.



3.Cooperate with manual cutting torch, semi-automatic cutting machine, shape cutting machine, CNC cutting machine to instead of traditional fuel gas.







Features of Okay Energy HHO Flame Cutting compared with acetylene propane etc. gas fuel:



1.Oxyhydrogen gas flame is concentrated. Preheating time is short in the same energy condition.



2.The heat affected zone of oxy-hydrogen flame is small.









3.Oxyhydrogen Cutting is barely have hang slag, cutting section have a good vertical.







High Frequency Brown Gas Generator / Oxyhydrogen Generator / HHO Ggenerator OH1500-10000



The left is Oxy-hydrogen Cutting picture, right is acetylene cutting picture.







4.Oxyhydrogen cutting has no pollution, no black gas, it is environment friendly and not harm for people's body.



Oxy-hydrogen Cutting:



2H2+O2u00e0 2H2O

it just formed water vapor in the cutting process, no any carbon emissions.



Acetylene cutting:



2C2H2+5O2u00e04CO2+2H2O

there is carbon dioxide emissions.



Oxygen-propane cutting:



C3H8+5O2u00e0 3CO2+4H2O,

there is carbon dioxide emissions.





Furthermore, Hydrogen gas is avirulent insipidity, but acetylene, propane and other industrial gas include sulphide,lead compounds and etc. harmful substances, they will cause respiratory disease if workers inhaled.



HHO Cutting can save energy by 50% compared with Oxy-acetylene cutting and save energy by 30% compared with Oxy-propane cutting.



Cost Comparison between HHO Cutting and Acetylene and Propane cutting



Test tool: stopwatch,mass flow meter, three-phase watt-hour meter, straight line cutting machine



Test steel plate: 1m long, 60mm thick steel plate



Test method: take the average of ten times test



General data:



Propane: $1.39/kg



Acetylene: $3.15/kg



Oxygen: $2.5/bottle=$0.41/m3



Electricity price: $0.13/degree



Comparison Terms

Acetylene

Propane

Oxy-hydrogen gas



Cutting time

3 mins and 55s

4 mins and 30s

4 mins



Oxygen consumption

180L

250L

151.7L



Fuel gas consumption

0.061kg

0.06kg

0.45 degree electricity



Oxygen cost

$0.071

$0.11

$0.061



Fuel gas cost

$0.2

$0.081

$0.06



Total cost

$0.271

$0.191

$0.121













Technical Parameters HHO Generator/Metal Cutting Machine:





Model

OH1500

OH3000

OH5500

OH7500

OH10000
