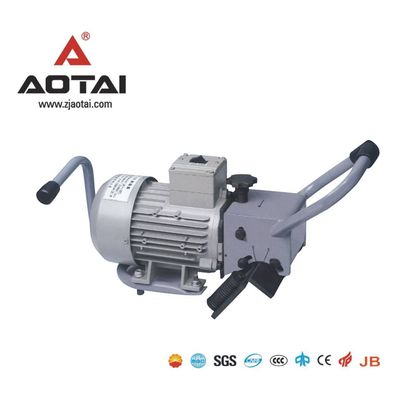

Plate Bevel Milling Machine (SKF-15)

Plate Beveling and Milling Machine/lathe (SKF-15)



Describe:

This machine or lathe is a handy, portable and flexible unit for the preparation of welds, bevelling of meaterials resp. And chamfer/bevel large tube/pipe, the low weight(please compare with our competition) enables use on almost every work place and a rattling-free, steady milling operation. The operation is easy and safe. The machineis suitable for milling steel plate or pipe/tube, VA, cast iron and nonferrous heavy metal by one-hand operation.

Technical parameter:

Pipe / tube diametics: ≥ 1600mm

Motor/Voltage: 380V AC, 50Hz-other voltages/frequencies on request

Capacity: 1.5KW

Rotation speed: 2870rpm

Land width: 15mm max., (progressively adjustable)

Bevel angle: From 30degree to 60degree (progressively adjustable)

Weight: 18kg

SKF-15

Standard：Q/ZAT 01-2008

The products are widely used in the field of petroleum,chemical,natural gas ,power supply construction, boiler and nuclear power, such as the project of West Gas Transporting to East China. Our products are exported to worldwide ,and are famous for high quality and fame u2013brand both at home and abroad .

We are dedicated to becoming the largest comprehensive beveling machine manufacturing base of china .Our company has imported advanced manufacturing equipments and process technology from developed country ,fully implements computer-aided design and manufacture ,innovation sustained ,and we have independent intellectual property rights ,total 16 patents ,Our company has passed ISO9001:2000，CE quality system management .

Our factory is located in the middle of gold coast ,binhai industry area ,Wenzhou city ,it is a national economy &technology development area nearby airport ,with convenient traffic . our management eidos is to presenting the best quality and service for our client ,and get reciprocity
