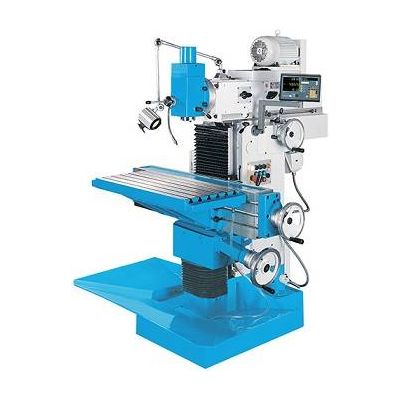

Universal Tool Milling Machine

Universal Tool Milling Machines

Milling machine for tool construction

Automatic feeds on 3 axes

Can be enquiped with Digital Position Indicator.

Powerful Tool Milling Machines;

Milling machine for tool construction;

Automatic feeds on all 3 axes;

Outer arbor supporting for horizontal milling;

Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;

Steamlined arrangement of operating controls on the right side;

Vertical head quill for drilling, with hand lever feed;

Quill stroke 80mm;

Central lubrication;

Hardened guideways;

Can be enquiped with Digital Position Indicator.

Peroformance:



Powerful Tool Milling Machines;

Milling machine for tool construction;

Automatic feeds on all 3 axes;

Outer arbor supporting for horizontal milling;

Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;

Steamlined arrangement of operating controls on the right side;

Vertical head quill for drilling, with hand lever feed;

Quill stroke 80mm;

Central lubrication;

Hardened guideways;

Can be enquiped with Digital Position Indicator.

Standard Accessoires:



Complete tool

Cutter arbor (dia.16,22,27,32mm)

Reducing sleeves (Morse1,2,3)

Spring collect (dia.2,3,4,5,6,8,10,12mm)

Optional Accessories:



Dividing head

Machine vice

Universal angluar table

Rotary table

Boring head

3-axis digital position indicator

Main Technical Data:



Specification

ModelM40M32M30A

Work space dimensions400 x 800 mm320 x 750 mm300 x750 mm

Vertical table dimensions250 x 1060 mm225 x 830 mm225 x 830 mm

T-slots,work table6 x 14 x 63 mm5 x 14 x 63 mm5 x 14 x 63 mm

T-slots,vertical table3 x 14 x 63 mm3 x 14 x 63 mm2 x 14 x 126 mm

Longitudinal travels(X)500 mm45(manual) / 400 mm405(manual) / 395 mm

Transverse travel(Y)400 mm305(manual) / 300 mm200 mm

Vertical travel(Z)400 mm400(manual) / 390 mm390(manual) / 380 mm

Horizontal spindle(Min.)95 u00b1 63 mm85 u00b1 63 mm35 mm

Horizontal spindle(Max.)475 u00b1 63 mm485 u00b1 63 mm425 mm

Vertical spindle(Min.)55 u00b1 63 mm85 u00b1 63 mm

Vertical spindle(Max.)445 u00b1 63 mm440 u00b1 63 mm

Max.throat540 mm160 mm188 mm

Speed range40~2000 r/min.40~2000 r/min.40-1600 r/min

Spindle mountISO 40, Taper 7:24ISO 40, 7:24ISO 40, Taper 7:24

X,Y,Z axis feeds10~380 mm/min.10-380 mm/min.

Rapid feed1200 mm/min.1200 mm/min.

Quill stroke80 mm80 mm80 mm

Main motor rating3 kw2.2 kw2.2 kW

Feed motor rating5 kw3.59 kw

Dimensions(LxWxH)1390 x 1430 x 1820 mm1215 x 1200 x 1800 mm1170u00d71210u00d71600 mm

Weight1400 Kg1300 kg1100 Kg

Max.swivels of vertical cutting head u00b190u00bau00b160u00b0
