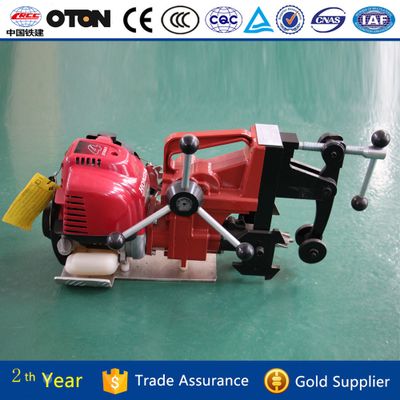

High performance portable Honda engine rail drilling machine

The High performance portable Honda engine rail drilling machine in China is a new type drilling machine for railways. Featured by portable, fast in drilling, accurate in positioning, easy and safe for operation. It is an essential tool for railway maintenance and rescue operations.

For drilling flat bottom and grooved rails, also on free rail ends and in switch areas.

Robust spiral drill technology

• Quick-clamping device
• Automatic drill feed . Fast feed and return of drill bit
• Drill yoke with quickclamping device and anti-twist fishing surface clamping template for three rail types S49, S54, UIC60
• Automatic height adjustment of drill, even for worn rails
• Indicator for bore centre in longitudinal rail direction
• Container for drilling fluid

  SPECIFICATIONS FOR High performance portable Honda engine rail drilling machine

  Name

  High performance portable Honda engine rail drilling machine

  Power

  1.2kW

  Diameter of drilling hole

  31±0.5mm

  Rotate speed

  200r/min

  Accuracy of drilling hole

  Less than 1.0mm in position accuracy of drilling hole

  Service life of drilling head

  40-50 holes after repairing and grinding one time; under the ordinary wearing condition, one drilling head can be repaired and grinded more than 20 times.

  Weight

  23kgs

  Dimensions(L×W×H)

  640*360*365mm
