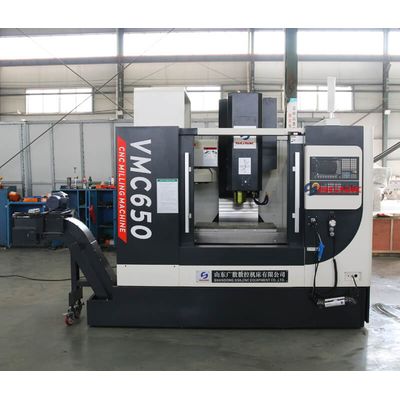

VMC650 Vertical Machining Center

Vertical Machining Center Features:
High quality resin sand

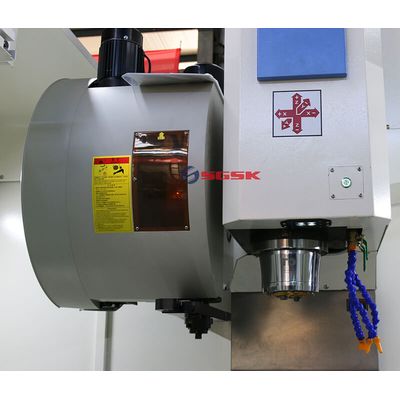

Taiwan spindle

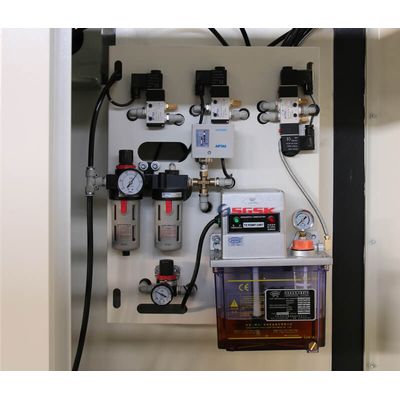

Automatic lubrication system
Chip conveyor at optional

Vertical Machining Center Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

Vertical Machining Center main technical specifications:
Specifications    Units    VMC650
Table size    mm    800x400
X axis travel    mm    650
Y axis travel    mm    400
Z axis travel    mm    500
Max. worktable load    kg    400
T slot(number-width-pitch)        3-18x125
Max. spindle speed    rpm    8000(Optional:10000 )
Spindle taper    mm    BT40
Main motor power    kw    5.5
X/Y/Z rapid traverse speed    m/min    24/24/20
(Optional:48/48/36 )
Cutting feed speed    mm/min    1-10000
Guide rail type        Linear rail
Distance from spindle axis to column surface    mm    469
Distance between spindle nose and worktable surface    mm    100-600
Positioning accuracy    mm    ±0.0075
Repeat positioning accuracy    mm    ±0.005
Tool magazine        16 Armless/(Optional: Arm 24 )
Max. tool diameter    mm    φ90
Max.tool weight    kg    8
Machine weight    kg    4000
Overall dimension    mm    2400x2000x2550

Standard configuration

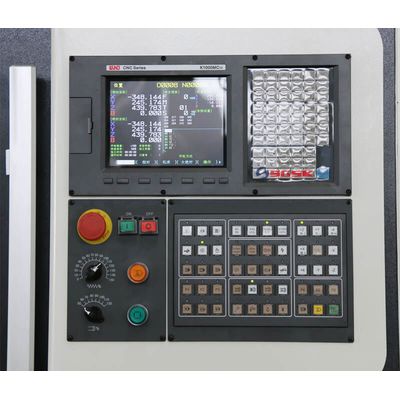

System:KND-1000M

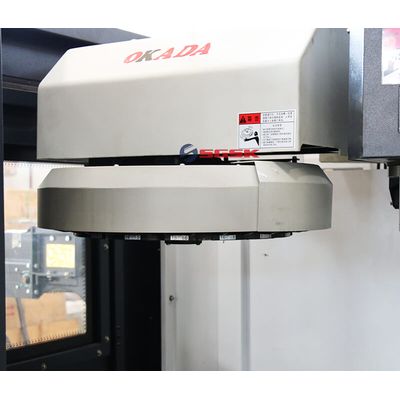

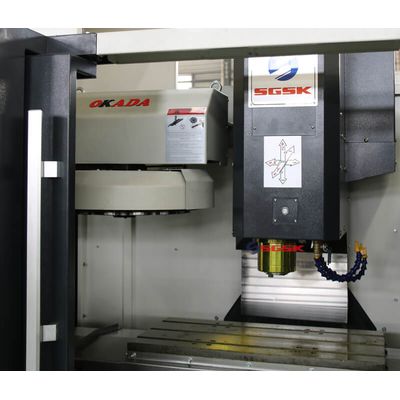

16 Armless Tool Magazine
3 axis linear railway
Automatic lubrication system
Automatic coolant system
Taiwan Spindle

 Optional configuration
 System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit
