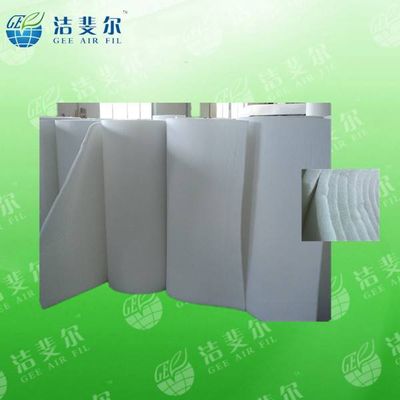

Spray booth Ceiling Tianjing Filter media

Progressively structured ensure perfect performance

Absolutely no migrating of paint-damaging particles larger than 10 micron

With special adhesive coating in full depth on each individual fiber

Full self-extinguishing flame properties

Clean air side dense and smoothed and reinforced with open mesh scrim

1) Application: capturing particles, especially for the top part of spray booth, pre-filtrationu00a0 through air filter program, diffluent equally

2) Type : supply slices or rolls size

3) Media: synthetic fiber with gradual density, full imregnated with adhesive treatment

4) EN779 class: F5

5) Average arrestance: 96% (ASHRAE52.1-1992)

6) Average efficiency: 45%-55%(ASHRAE52.1-1992)

7) EUROVENT 4/5 class: EU4

8) DIN53438 Non-flammability Standard: F1

9) Final resistance:(suggest) 400Pa

10) Max, Dust holding capacity: 480g/m2

11) Temp resistance: 100oC

12) Instant temperature: <120oC

Technical DataModel

ZJ-560ZJ-600PA-50PA-75PA-100

Average Arrestance (EN779)94%95%93% mist95% mist98% mist

Initial Efficiency<50%<50%<30%<35%<40%

Air Velocity (m/s)0.250.251.0

Initial Pressure Drop (Pa)2525202530

Final Pressure Drop (Pa)450450200200250

Dust Arrest Capacity(g/m2)420450140018002500

Class (EN779)F5F5G3G4G4

Temperature Resistent u00b0C100

Thickness(mm)20205075100

Humidity90%90%90%90%90%

UL 900 StandardCLASS 2CLASS 2CLASS 2CLASS 2CLASS 2

Roll Size (m)2*20

capturing particles, especially for the top part of spray booth, pre-filtrationu00a0 through air filter program, diffluent equally
