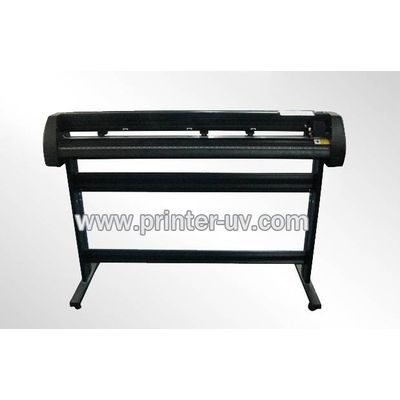

small size paper/vinyl cutting plotter

Selling Points:



1.Repeat Functions.

2.Mainboard 32- bit ARM7 CPU,4MB,High-speed CACHE memory.

3.Largest Dispay: 3.0inch LCD Touch screen

4.5 different backlight colors.

5.More Interfaces: USB/SD card/Serial Port/WiFi/Bluetooth

6.Low noise,even lower than 60dB.

7.High-precision Steel Axes

8.Support all Windows,besides Win7/XP/Vista

9.Package,outside the carton box with a plastic bag to keep clean and dry.

small size paper/vinyl cutting plotter

small size paper/vinyl cutting plotter



small size paper/vinyl cutting plotter

1.Characteristic design,adjusting cutting force and plotting speed at any time

2.European popular large screen high bright display ,clearly to operate

3.USB interface optional,supporting plug in and off when power is on

4.Serial port, large memory, quick off-line,Coreldraw output direct

5.Domestic popular plotting language,supporting many popular kinds of software at home and abroad

6.Unique double cutter position, double pressing strips for processing different kinds of materials.

Practical model RC-360RC-720RC-870RC-1100RC-1350

Max.paper width360mm720mm870mm1100mm1350mm

Max.plotting width270mm630mm780mm1000mm1260mm

N.W/G.W8/12KG11/20KG13/23KG15/27KG17/32KG

Measurement(mm)605*350*370960*350*4301110*350*4301340*350*4301590*350*430

StandNoneYesYesYesYes

Operation environmentTemperature:5C-35C Relative humidity: (30%-50%) Without condensation

InterfaceSerial (USB optional)

Cutting toolImported hardness alloy steel blade

Language formatDMPL/HPGL

Power supplyAC90V-AC260V

Negative pressure adsorptionYes

Cutting blade soft landingYes

Origin point setupYes



Features:



1.Wireless controls communication

2.Membrane buttons + LCD touch screen

3.SD memory storage, Work independently without PC.

4.Special software interface, can output directly from CorelDraw ,Ai

5.Support USB / serial communication port connect to PC

6. Steel Axis Of High-Precision

7.Pressure/Speed Regulation without Stoppage

8.Compatible alll kinds cutting software,CORELDRAW and AI.AUTOCAD

9.Package: outside carton box with plastic bag,to keep clean&dry during shippment.





Is this cutter right for you?



1.Stable and compatible.

2.Support Windows XP/Vista/7 32bit and 64bit system.

3.It cuts accurately to make sure you get what you design.

4.It cuts quicker now. The model cuts quicker to save time for large volume users.

5.We make step-by-step setup guide for you so you can follow it to set up the cutter.

6.Endless support from us until you satisfied with the result! Yes we are keen to help you and support you all the time.

7.We keep all the parts for you so if you need to change any parts of this cutter, we will express them to you. You can have free of mind on production.



What you can do with this cutter:



1.Make stickers for car deco, window sign, indoor deco

2.Cut shirt vinyl, such as football jersey numbers, names, etc to print on shirts.

3.Cut template out for sandblasting, etc.

4.Plotting for architectural designs, etc.

5.Think of your own or ask us to see if it works for your purposes.

small size paper/vinyl cutting plotter
