132x75x48 Vacuum Suction Cups 6308A0159 Complete set for Biesse Pod and Rail CNC

• • Biesse part No.: 6308A0159
• • ATS suction cup for Biesse
• • Dimension: 132 x 75 x 48mm
• • 48mm tall vacuum block
• • Biesse 1614A0120 suction blocks
• • Biesse half pod
• • Standard size Biesse vacuum cup
• • Including top black valve, bottom locating ring and rubber gasket
•  INQUIRY

132x75x48 Vacuum Suction Cups 6308A0159 Complete set for Biesse Pod and Rail CNC

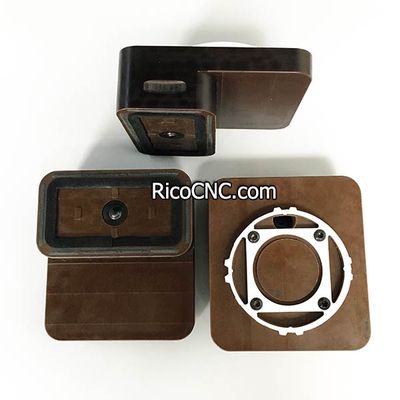

These brown color vacuum pods are Biesse half size 132 x 75 H=48mm with part no 6308A0159 or 1614A0120 suction blocks. The pods are suitable for CNC machining centers from Biesse.

They are very important parts of the CNC processing center. Vacuum blocks for Biesse Consoles are used in table systems in CNC centers to hold down the wood workpieces by vacuum.

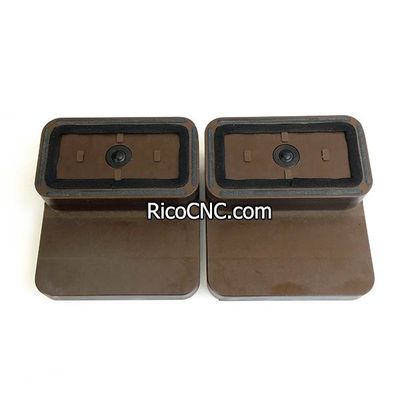

The suction cups are equipped with a ball valve that only releases the suction when the workpiece is placed.

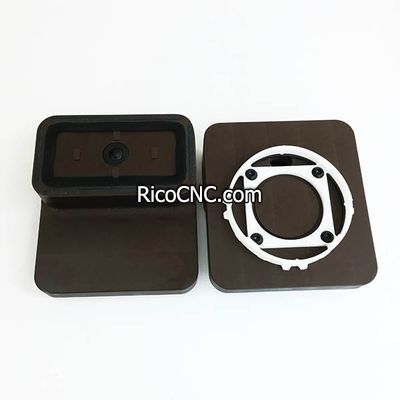

The base bodies of the vacuum cups are inserted into a holding fixture by a white locating ring on a pod and rail table. These two components can be replaceable when they are broken.

These 48mmm ATS vacuum pads are widely used Biesse many series CNC processing center, such as ROVER A 16, ROVER B EDGE, ROVER GOLD, ROVER AS.

There are three different heights and shapes of these Biesse cushion cups, 29mm, 48mm and 74mm with full size, half size and 1/3 size. You can choose the suction pods according to your requirements. Here are the dimensions for Biesse vacuum pads:
132x146x29mm
132x75x29mm
132x54x29mm
132x146x48mm
132x75x48mm
132x54x48mm
132x146x74mm
132x75x74mm
132x54x74mm
