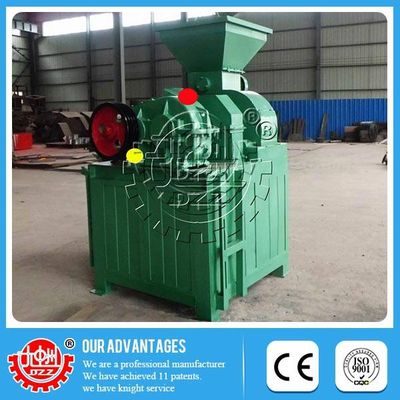

Latest technology Machines for sale hydraulic briquette machine

1.Product description:

Ball Briquette Machine is based on the direction of development of domestic and foreign counterparts,collect the advantages of similar powder briquette ,machine, make full use of advanced technology to develop a new generation of products.



2.Advantage of Hydraulic briquette machine:

1. High profit and low cost in raw material

2. Increase the calorific value per unit volume after briquetting

3. Energy saving, friendly-environment, Low-consumption

4. No chemical additives, no smell, no smoke

5. Easy to transport and store as densities product

6. High briquetting ratio, high pressure coal briquetting machine



3.Features:

---the roller is made by hard materials, with good wear resistance and long life time;

---the service life of wearing parts is up to 4000 hours;

---the machines electricity cost reduces by 60%;

---the machine is easy to operate and maintain;

---the molding material is energy-saving, easy to transport and higher utilization of waste.

---the final product is smokeless, non-toxic, none peculiar and environmental protection.

---the end products shapes include oval, round, square, ball egg-shaped and pillow-shaped.



4.Hydraulic briquette machine working principle:

This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.~IHBZDZ%2[RGE5EU3H~JF5N





5.Request for raw materials:

1. In order to ensure the good quality and machanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferable in the range of 30-40% small than 1-2 mm, with no more than 10% over 2mm.



2. The moisture content of the mixture has also a critical effect on the quality of the final product, so it should be kept in the range of 8-20%.

---theu00a0rolleru00a0isu00a0madeu00a0byu00a0hardu00a0materials,u00a0withu00a0goodu00a0wearu00a0resistanceu00a0andu00a0longu00a0lifeu00a0time;

---theu00a0serviceu00a0lifeu00a0ofu00a0wearingu00a0partsu00a0isu00a0upu00a0tou00a04000u00a0hours;

---theu00a0machinesu00a0electricityu00a0costu00a0reducesu00a0byu00a060%;

---theu00a0machineu00a0isu00a0easyu00a0tou00a0operateu00a0andu00a0maintain;

---theu00a0moldingu00a0materialu00a0isu00a0energy-saving,u00a0easyu00a0tou00a0transportu00a0andu00a0higheru00a0utilizationu00a0ofu00a0waste.

---theu00a0finalu00a0productu00a0isu00a0smokeless,u00a0non-toxic,u00a0noneu00a0peculiaru00a0andu00a0environmentalu00a0protection.

---theu00a0endu00a0productsu00a0shapesu00a0includeu00a0oval,u00a0round,u00a0square,u00a0ballu00a0egg-shapedu00a0andu00a0pillow-shaped.

Model: ZZXM-4

Power: 7.5-11kw

Capacity: 3-4t/h 10000t/year

Overall size: 1200x1150x1835mm

Weight: 2.1t

Roller width/diameter: 250mm/360mm

Total pressure: 15t

Rotary speed of main spindle: 18r/min

Line pressure of roll face: 0.5t

Pressure stype: Wedge papilionaceous spring stype

Roller materails: 65Mn 9Cr2Mo wear-resistant alloy

Heat treatment: 52~58u00b0

Structural form: Two rollers and single pressure/Four rollers double pressure

Ball shape: round, pillow-shaped, oblate, oval-shaped,diamond

Ball size:30~60mm

Any question pls contact me. It is our goal to offer the best service to you.
