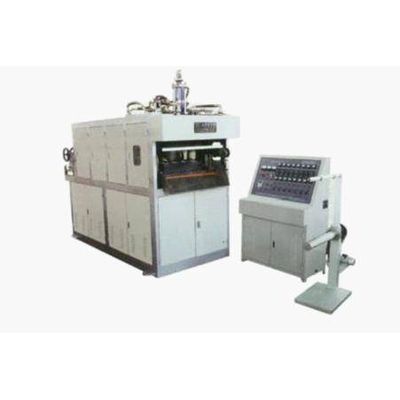

Plastic Cup Making Machine (Hydraulic)

Model WB-660SB-B Max.Forming Area 650 x <220 mm> Approx. Running Speed 15-30 strokes / min Suitable Sheet Width 300- <660 mm> in rolls. Mode of cutting arrangement. In mould automatic <<< >>>. 0.20 u2013 <2.0 mm> Material Used PP,HIPS,PET,PVC Max.Draw depth, i.e. cup length. <125 mm> Oil Pump Motor Power 7.5KW Max. Sheet roll diameter. <800 mm> Heating arrangement Top + bottom heating with IR Ceramic Heater(104pieces, 650W) Temperature Controller & Thermocouple. PID K-Type Type of Mould Multi cavity 1 - 3 row. Approx. electricity consumption 35KW Approximate Dimension L3400 u00d7 W1500 u00d7 H2300 (mm) Approximate Weight <4200Kg>

FullyAutomatic Plastic Cup Thermoforming Machine is used to produce disposable water drinking cups, ice-cream cups, disposable cup/bowl for yoghurt, lids, dishes, plates and etc. WB660SBA FullyAutomatic Plastic Cup Thermoforming Machine is new equipment, which has been developed and produced with many years of machine producing experiences of our company, it uses stable hydraulic system and pneumatic technology to control together, its operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of formed machine, material rack, material receiving machine and screen controlled by electricity.
