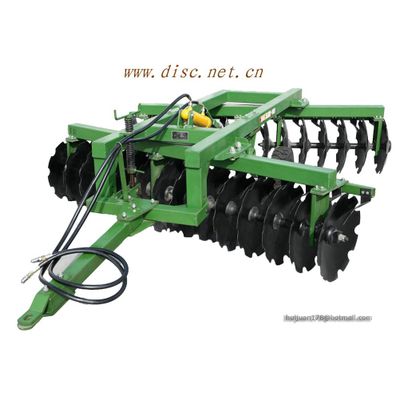

disc harrow in farm machinery

1: disc harrow Type: 1BZ-1.6,1BZ-1.8,1BZ-2.0,1BZ-2.2,1BZ-2.5,1BZ-3.0,1BZ-3.4, 1BZ-3.9,1BZ-4.4,1BZ-4.8,1BZ-5.3,1BZ-6.22: disc harrow Material: 65Mn3: disc harrow Working width : 1600-6200mm4: disc harrow Working dept: 200mm5: disc harrow Linkage : Trailed6: disc harrow Export: EU;North America ;South America; North Africa etc..

Heavy suspension offset disc harrow 1 They have been proved to be satisfactory for harrowing work on uncultivated lands and in heavy clay soil fields. 2 It may be used for cleaning away stubble of plants before tillage, or crushing clods after tillage. 3 It may also be used as plough for primary tillage in cultivated fields. 4 Maximum harrowing depth on uncultivated land can reach 25cm.

Model Unit 1BZ-1.8 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4 Overall dimension cm 480*200*134 482*244*134 532*288*134 532*332*134 582*376*134 Weight kg 1050-1100 1250-1300 1380-1430 1500-1550 1650-1700 Working width m 1.8 2.0 2.5 3.0 3.4 Working depth cm 20 Blade spacing mm 230 No of disc pc 16 20 24 28 32 Dia.of disc mm 660 Transport clearance mm ＞160 Producivity ha/h 1.1 1.3 1.4 1.7 1.9 Matched power kw 44-55 52.9-66.2 55-73.5 58.8-88 66.2-100 Linkage Trailed

disc harrow in farm machinery- cultivator

Quick DetailsCondition:NewType:Farm CultivatorPower Type:tractorPower(W):30-260 HPCertification:ISO 9001:2000Warranty:3 yearsUse:cultivatePlace of Origin:Shandong, China (Mainland)Brand Name:DA DIModel Number:1BZ-1.8/2.0/2.4/2.8/3.0/4.0/5.0/6.0Weight:300-2600KGDimension(L*W*H):manyAfter-sales Service Provided:Engineers available to service machinery overseasworking width:1.8/2.2/2.5/2.8/3.0/3.4/4.0/5.0/6.0/8.0working depth:200-350 mmnumber of disc blade:18/24/30/34/40/56/78Packaging & DeliveryPackaging Details:Iron cages or according to customer requirementsDelivery Detail:According to purchasing quantity
