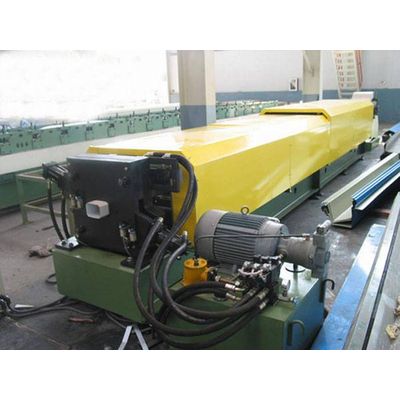

Downspout Roll Forming Machine

Main Technical Specification:

thickness: 0.4-1.0mm

roll station: 19 stations

main power: 3 KW

hydraulic power: 5.5 KW

control system: PLC Panasonic

Drive: by chain

Coil dia (Max):1600mm

Coil Width(Max.):500mm

2, feeding, leveling

feed into unit oriented wheel(can right and left adjust)

into feeding roller, dia is 180mm,material 45# steel, quenched 48u00b0-52u00b0, chromed

leveling is three roller above and four roller below, quenched and chromed

3, punching (can right and left adjust)

using hydraulic punching

oil cylinder dia: 140mm

working pressure: 20mpa

hydraulic power: 7.5kw

size: 1.5m long* 1.1m wide*1.2m high

4,roll forming

main motor power: 37kw

Decelerating motor: BWD14-43-37kw, made in Shanghai or

Changzhou

drive: chain driving, 1.2 inch double rows

main shaft dia: 100mm material: 45#forge steel

roller material: GCR15 quenched 58u00b0-62u00b0,chromed

roll station: 17 stations

Timing by transducer : 5m--12m/min(not including punching)

Transducer: Panasonic made in Japan. 380V 50HZ

Computer: PLC

Computer operating panel: touching screen

5, cutting

hydraulic cut

knife material: Cr12,quenched 58u00b0-62u00b0

oil cylinder dia: 160mm

working pressure: 20mpa

working journey: 80mm

6, the Outside size: 18m long*2.2m wide*1.5m high

7, Run out table

Jointed by 60mm * 40mm tube (can be adjusted to up and down)

Gliding wheel fixed on the shelves

size: 1.5m long*0.8m wide*0.6-1m high(can be adjusted)

a,the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c,we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .



d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

downpipe

Technological process

Decoiling-Feeding-roll forming-cut to length-product packing manual



NOTE: All the equipment will be designed according to customer's requirements!
