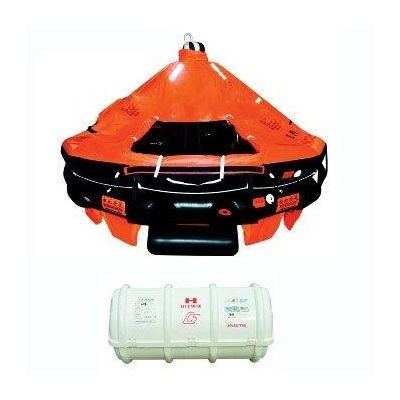

Throw-over Type Inflatable liferaft

Throw-over Type Inflatable liferaft

1.Application: It is suitable for installing ships on international voyages

2.Inflation method: After throw-over from ship, the life raft can be inflated and open anutomatically. If the ship sinks very fast and the liferaft can not be thrown-over, the raft still can float up from water under the action of Hydrostatic release unit and can be inflated and opened automatically.

3. Max. Storage Height:

The installation height is 18-35M from water surface.

4.Capacity Person:6,10,15,16,20,25 person

5.Spec details as below tabel:

Sea aquamarine co., ltd

Capacity Length MM Width MM Height MM A PACK Weight KGS B PACK Weight KGSContainer Size Φ u00d7 L MM

6 2175 2175 1250 ≤ 85 ≤ 70 Φ 610u00d7 1100

10 2730 2730 1400 ≤ 105 ≤ 80 Φ 685u00d7 1150

15 3380 3380 1500 ≤ 135 ≤ 100 Φ 700u00d7 1300

16 3380 3380 1500 ≤ 137 ≤ 102 Φ 700u00d7 1300

20 4350 3050 1600 ≤ 170 ≤ 125 Φ 730u00d7 1550

25 4835 3325 1700 ≤ 200 ≤ 145 Φ 730u00d7 1550
