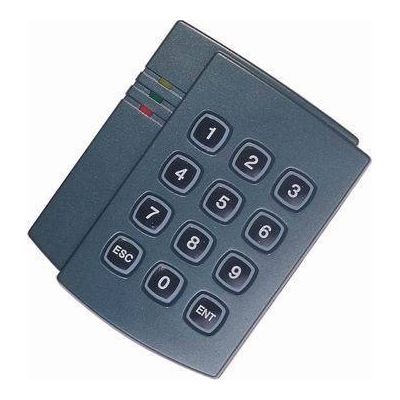

Access Control Keypad & RFID Card Reader 008F

Specification



u00b7 Wiegand 26bits/ Wiegand34bits Standard Format Data Output



u00b7 Support ID (UEM 4100,125 KHz, 64bits, Manchester Code) Card or PIN Opening Door Mode.



u00b7 Less than 0.2 second Response Speed



u00b7 Less than 0.5 seconds Proximity Time Distance:



u00b7 2-15cm Proximity Range



u00b7 -25℃ to 75℃ Ambient Temperature



u00b7 10%-90% Ambient Humidity



u00b7 Built-in Antenna



u00b7 Built-in LED (Double Color LED)



u00b7 Built-in Loud Speaker (Buzzer)



u00b7 DC 5V-16V Working Voltage. Standard Direct Current 12V



u00b7 70mA Working Current



u00b7 100 Meters Communication Distance



u00b7 Real Time Data Transfer



u00b7 Black Color



u00b7 Standard Style (3u00d74) Keyboard Format



u00b7 PVC Case Material (Black Resin for Water-Proof Function)



u00b7 108*88*32(mm)







Installation







Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.







Wire Connection







Red +12V



Black Wire GND



Blue Wire DATA1



White Wire DATA0



Green Wire Green LED



Brown Wire Buzzer
