access control handfree video door phone for villa

1: 7inch color TFT video door phone

2: Plastic camera

3: handfree,night vision

4: ultrathin monitor

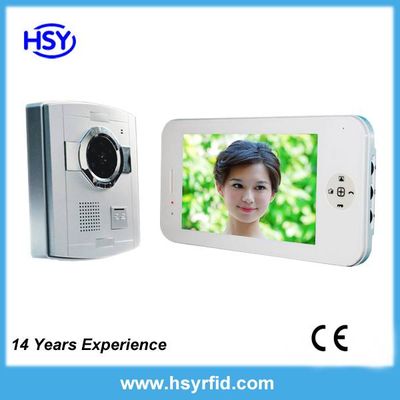

7 Inch TFT video intercom Video door phone for villa











Function and Features:







Plastic camera, good design, CMOS or CCD sensor.6 LED lights, night vision.



Hand free indoor monitor, 7 inch CRT, clear image.



Intercommunication, monitoring the outdoor, unlock.



Intercommunication is available between indoor and outdoor unit



Brightness, chroma and ring adjustable



3-chord melody rings for option.



Two cameras can connected with four monitors.(different choice)



Four wires, DIY installation



Including in one kit: One indoor monitor, one outdoor camera, power adapter, user manual, cables



Packing detail: Color box, 5sets in one carton.



Surface mounting for monitor, Flush mounting for camera



Monitor dimension: 230(L) u00d7180(W) u00d718(H) mm



Camera dimension: 113(L) u00d7140(W) u00d733(H) mm



Wiring requirements: 30M: RVV4 X 0.5 mm, 50M: RVV4 X 0.75 mm, 100M: RVV4 X 1.0 mm











Data of Technology:







Night vision illumination distance; more than 2 meters



Gain control: Automatic



Working temperature: -10 C- 50 C



Illumination: 0.1 Lux



Camera angle: 92 C degrees wide-angle



Adapter input voltage: AC100-240V 50Hz-60Hz



Adapter output voltage current: AC14.5V 1200mA



Talk time delay: 90S



Monitor time delay: 30S



Dissipation: stand-by <0.5W working <10W



Relative humidity: 10 % - 90% (RH)

HSY-VDP6-B

villa door phone
