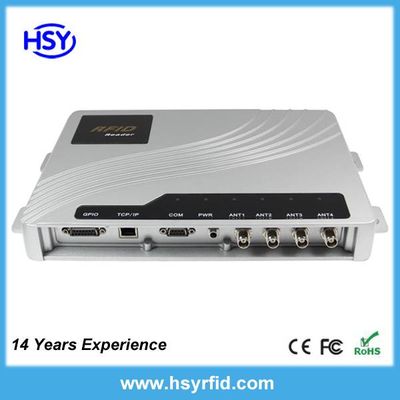

UHF RFID Long Range Card Reader/reading distance 12m

1.RFID Card reader, UHF RFID Reader

2.with 4 antenna ports

3.reading distance 12m

4.RS232/RS485/RJ45 communication interface

Reader introduce:

HSY-LF 004 RFID reader is base on generation 1 product improved generation 2 RFID reader,This reader compatible many protocol,separate type design,connect with 4 antenna,fast reading,multi tag identify,Industry protection grade design etc. This reader are widely use in various RFID system,reference application as below:



1. Logistics and warehouse Management: Goods flow, warehouse management, and the flowing management of mail, parcel, luggage.



2. Intelligent parking Management: Parking management and automatic charge



3. Productive lines Management: Production process fixed Identify



4. Product counterfeit-proof inspection: Using memory's write-protect functions inside tags, and identifying with true-false of products



5. Other fields: Used widely in club management, library, student's school, consumption management, time management, dinner management, pool management



Reader characteristic:

1. Special Anti collision algorithm, high efficient of multi-tag identify capability;



2. Four separate transmit/receive antenna to make more wide of area in the application;



3. Compatible ISO18000-6B and ISO18000-6C (EPC-GEN2) protocol standard;



4. Read/Write tag capability: read >12m, write is 60% of read reading(depend on different tag);

5. Reader support multi tag identify,single tag read,tag write,lock,and Kill tag etc.





Technical parameters:



Model

HSY-LF004



Protocol

ISO18000-6B,ISO18000-6C(EPC GEN2)



Frequency

Standard ISM 902~928MHz and ISM 865~868MHz, other frequency available



Operation Mode

FHSS



RF Power

0~30dBm, software programmable



Reading Speed

Software Programmable, Average Reading per 64Bits: <6ms



Reading Mode

Timing or Touch, Software Programmable



Data Ports

Standard: RS485, RS232, RJ45(TCP/IP); software programmable



Output Port

4 Team out port (can control output high/low level)



Reading Range

Depends on antenna gain, when connect with 12dbi antenna, the reading distance is about 12m



Reading Clue

Buzzer and LED



Antenna

one~ four Antenna, TNC connector



Power Supply

DC+9V (supply AC/DC power adapter)



Dimension

310mmu00d7210mmu00d740mm



Weight

2 .7Kg



Operation Temp

-20~+80 Degrees
