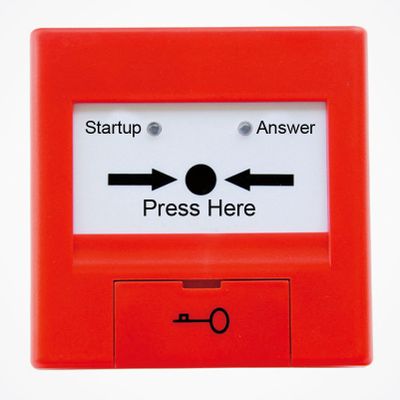

Fire Hydrant Button

Fire Hydrant Button

Features

Installed in public places; when there is a fire, pressing the frangible element to activate fire pump; after confirming fire pump having been activated, light the answering light of the button

Alarm by pressing, reset by a special key

Four-wire / six-wire system

Electronically addressed

Reusable

Specifications

Operating voltage: Loop 24V

Operating current: Standby current: ≤0.2mA Starting current: ≤1.5mA

Operating Environment: Indoor

Temperature: -10°C~+55°C

Relative Humidity: ≤95%, non-condensing

Indicator: Starting indicator Red  Flashes about every 3s when polling Illuminates after being activated

Answering indicatorGreen Illuminates after confirming fire pump having been activated

Programming method: Electronically programming

Code range: one address is within 1~255

Material and color of enclose: ABS; Red

Weight: About 120g (with base)

Mounting hole distance: 60mm

Dimension (L×W×H): 90mm×90mm×42mm (with base)
