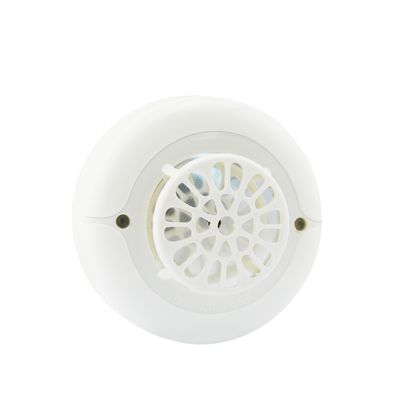

2 Wired Addressable fire alarm heat detector thermal sensor

2 wired Addressable fire alarm heat detector
Model: AW-D102

Description

Asenware AW-D102 heat detector is an intelligent rate of rise heat detector, which can be configured with Asenware AW-FP100
Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to
continuously monitor specific detector location (point). It reduces the maintenance cost and makes it easier to maintain the
system.

Features

• Addressable-analog communication
• Rate-of-rise feature activates when ambient
temperature increases at the rate of 7.1 u2103/5S
• Low Standby current
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes stationary during fire alarm condition.
• Remote test from Panel

Spacing

Spacing of detector must be followed by standard EN 54 or NFPA 72. N FPA 72
suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can
be applicable. However, please follow the specific codes and local codes for specific
applications.
