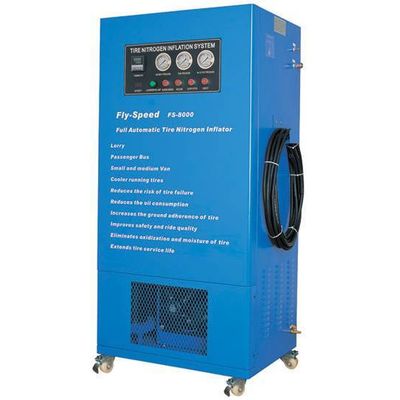

Tire Nitrogen Machine FS8000B

PSA（Pressure Swing Adsorption）Tire Nitrogen Machine, being used widely, does not need high cost equipments, land and high salary maintenance technicians, but it can produce Nitrogen with low cost, high purity and low dew point.









It is based on using the latest PSA technology and utilizes Carbon Molecular Sieve (CMS) to separate nitrogen from the other gases contained in air. When the air is compressed, N2 and O2 make up of most part of the air, however, oxygen molecules are much smaller than nitrogen and their diffuse speed is different, by using this point, the gas can be separated. After this process is finished, the CMS adsorbs the oxygen molecules, so the nitrogen produced by PSA has high purity and low dew point. Generally speaking, it is very easy to obtain the nitrogen with purity 99% and dew point -60℃. Our company is able to design and manufacture according to useru2019s requirements. The highest purity of nitrogen can be reached 99%.









The compressed air in the tire consists 20.9% of oxygen with heavy moisture, and oxygen is not stable in the tire. When the tire heats, oxygen will permeates through the tire wall. The test shows that the pervasion can stop till the pressure under the condition of 7 bar and the oxygen falls by 5%. Oxygen and moisture are harmful to the tire and wheel hub.







Vehicle Applicable Motorcycles, Cars, Vans, Mini-buses and Light trucks

Power Supply AC 380V 50Hz

Power 2.0 Kw

Nitrogen Purity 95%

Working Temperature +5℃~+70℃

Compressed Air Pressure Required 145 Psi /10 Bar/10 Mpa

Air compressor Discharge Rate 1.08 M3/Min

No Incremental, Output Nitrogen Pressure Required 87 Psi /6 Bar/6 Mpa

Incremental Nitrogen Output 232 Psi/16 Bar/16 Mpa

Nitrogen Capacity 300L

Nitrogen Producing Speed 160L/Min

Truck Tire（10.00/20 R75 size） 15 Tires/Hour

Display Mode LED Digital Display

Dimension 1700（H）u00d7800(L)u00d7700(W) mm

Packing Size 1920(H)u00d7960(L)u00d7770(W) mm

Net Weight 260kg

Gross Weight 292kg

Storage Tank Packing Size 620u00d71750（mm）

Storage Tank Weight 97KG

Good quality, competitive price, popular with customers

FS-8000B
