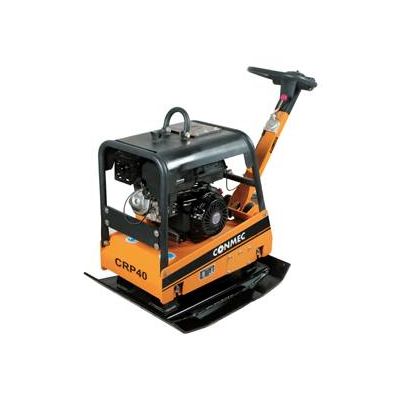

Reversible Plate Compactor CRP40, 40kn Centrifugal Force and 4800 rpm Frequency

Features:

Hydraulic adjustable control lever for easy direction change

On the spot compaction for problem areas

Large shock mounts reduce vibration to the handle

Easy-to-reach located controls

Heavy-duty shock mounts reduce vibration to the upper deck

Wear-resistant base plates extend life, open design reduces dirt building

Centrally-located lifting bar allows easy transportation in and out of trenches

Semi-covered protection cage protects the plate from accidental job-site damage

Heavy duty industrial throttle control is available as standard

Technical Specification



Model

CRP40-1

CRP40-2

CRP40-3

CRP40-4



Engine Type

Chinese Diesel KM186F

Chinese Petrol Engine

Robin EX27

Honda GX390



Power kw(hp)

6.6(9.0)

9.6(13.0)

6.6(9.0)

9.6(13.0)



Weight kg(lbs)

324(713)

310(683)

300(661)

310(683)



Frequency rpm

4800



Centrifugal Force kN

40



Travel Speed cm/s (in/s)

30(11.8)



Compaction Depth cm(in)

95(37.5)



Efficiency m2/hr(ft2/hr)

480(5166)



Plate size cm (in)

90*67(35.5*26.4)



Water Tank Capacity L

CRP40
