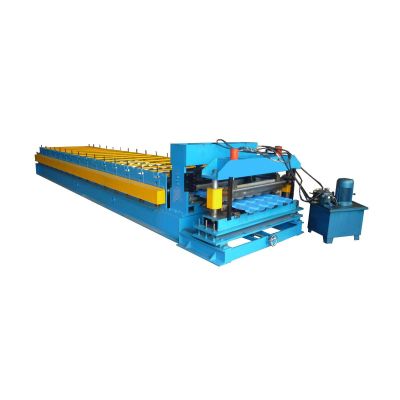

Premium Tile Profiled Sheets Roll Forming Machine

1:size of machine: 1250*(0.4~0.6)*L

2: working speed: 2 m-6 m / min

3: roll station: 16 stations

4: material of roller: 45# forge steel, polished and coated with chrome

5:material of main shaft:45#forge steel

6: main power: 4.5 kw

7: hydraulic station power: 5.5 kw

8: Hydraulic pressure: 10-12 Mpa

9: control system: PLC, Panasonic

10:size of machine:about 9000*1700*1400(mm)

11: total weight: about 7000kg

a,the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.

b.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c,we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .



d: it is very easy to install the equipment and suitable for producing in the factory.

e: the machine has features of low noise and high efficiency.

YX27-206-825

Metal roofing

Technological process

Decoiling-Feeding-roll forming-cut to length-product packing manual



NOTE: All the equipment will be designed according to customer's requirements!
