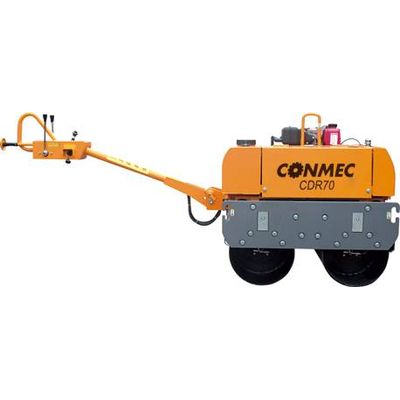

Efficent Double Drum Roller CDR70 with Honda GX390 engine

Features:

Deadman control lever offers reversing protection

Mechanical parking brake

Multi position handle for operator comfort and simplified transport

Built-in oil cooler will increase the productivity of ma Ergonomically designed controls are conveniently positioned to ensure speed, direction.

Anti vibration controls ensure non-fatiguing and low HAV for the operator.

Side and curb clearance allow for a closet approach to pavement, wall, curb and other obstacle

Dual smooth drums with beveled edge eliminates mark on the ground and asphalt.

Easy access to front mounted Diesel engine.

35 liters, corrosion-free water tank mounted at the rear of roller reduces sound and keeps dust to a minimum.

Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.

Two scraper bars on each drum ensure a clean drum when working on asphalt

Minimum overhand offering suitable side and curb clearance

Ergonomically design handle with dead man control offering protection to operator in reversing applications.

A fully hydraulic-drive system consists of hydraulic bump and hydraulic motors provide infinitely variable working speed for travel and vibration, eliminating regular maintenance and adjustments that chain driven rollers require.



Unique clutch/pump drive system provides easy cold weather starting and allows for no-load starting of engine.

Technical Specification





Model

CDR70



Engine Type

Honda GX390



Power kw(hp)

9.6(13.0)



Weight kg(lbs)

740(1628)



Drum Diameter cm(in)

65*40(25*15.7)



Centrifugal Force kN

24



Frequency vpm/hz

3600(61)



Travel Speed km/hr

2.5



Water tank Capacity L

35

CDR70
