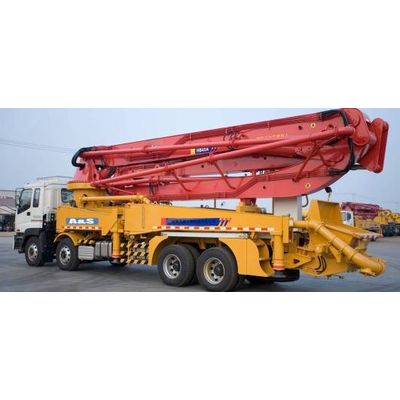

40M Truck-mounted Concrete Pump

Product Description

40M Truck-mounted Concrete Pump: AS5310THB40B
5-section RZ-shaped boom, with wide placing range and no dead angle;
X-shaped outrigger with fast expansion speed and one-side support function is suitable for construction at narrow worksite;
Computer controlled energy saving technique achieves optimal match between engine power and pump load, saving 20% oil consumption on average;
Pump displacement is up to 140m3/h (183 yd3/h), with stepless regulation which can meet requirements of different working conditions;
Electrohydraulic coupling controlled boom vibration absorbing technique greatly prolongs service life of the boom;
The original SYMC special controller contributes to much more stable operation of the system;
The adoption of the anti-tilting control technology improves intelligent level of the pump and enhances its safety performance;
Electrohydraulic buffer, differential pressure induction, open loop hydraulic system full-hydraulic directional control provides for small directional control impact and high reliability;
Automatic retraction of concrete piston makes it easier to check or replace the piston;
Automatic switch-over between high and low pressure improves pumping applicability;
Functional parameters are displayed by color graphics dynamically; fault type is prompted; multiple automatic protections are provided.
