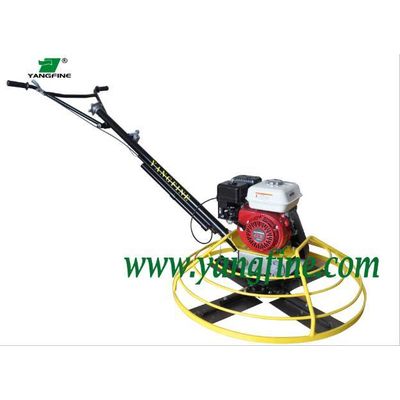

power trowel YF PT36-H

Use mainly in concrete floating and finishing, with different types of blades and pans used, through trowelling and weight of the machine to produce a flat, level and dense surface.

The enlarged diameter of the guard ring allows trowelling in larger areas

1, Over-built gearbox assures long life.2, Heavy-weight design to assures a superior finish.3, Height adjustable handle, dead-man switch available , assures operator comfort and easy control.4, Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit.5, Screw control ensures precise blade adjustment.6, With aluminum gear box of nodular casting iron gear boxes as optional.

ModelYFET24-HYFET24 -RYFET36-HYFET36-R

Combo Blade Size(LxW)mm230x120350x150

No . Of Blades44

Guard ring diameter (mm)610950

Max.Blade Pitch Angle-.2030

Blade Operating Speed-rpm85~13861~131

Engine

Engine ModelHonda GX160ROBIN EY20Honda GX160ROBIN EY20

TypeAir-Cooled 4 Stroke Gasoline EngineAir-Cooled 4 Stroke Gasoline EngineAir-Cooled 4 Stroke Gasoline EngineAir-Cooled 4 Stroke Gasoline Engine

Power Output (HP) / RPM5.5 / 3,6005.0 / 3,6005.5 / 3,6005.0 / 3,600

Engine FuelUnleaded Octane 86 GasolineUnleaded Octane 86 GasolineUnleaded Octane 86 GasolineUnleaded Octane 86 Gasoline

Weight (kg)56588284

Dimensions (LxWxH) (mm)950x610x7202100x950x1010

Brand NameYangfine Jeonil

Certificate1ISO9001:2000

Certificate2CCC
