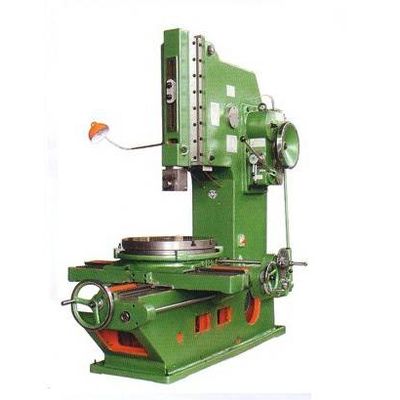

Slotting Machine M5020 and M5032

Product Name: Slotting Machine M5020/M5032





Performance:



u00b7 Powerful slotting machine;

u00b7 Used for slotting the flat and formed surfaces. keyways. etc;

u00b7 Suitable for either single-piece or small batch production;

u00b7 The main transmission mechanism is used for converting the rotating motion of the crank gear in to reciprocating motion of ram;

u00b7 The worktable of the machine is designed for longitudinal, cross and rotary feeding both automatically and manually, and the feed is stopped automatically when the worktable is in case of trouble;

u00b7 Designed elaborately with high standardization, uniform inaction, systemizing and has reasonable arrangement with compact and harmonically construction, pleasing appearance, convenient maintenance;

u00b7 The electric equipment of this machine is suitable for 3 phases A. C. power supply of 50 cycles. 380V. Main devices of voltages and or frequencies other than specified above can be supplied according to the special order of users.



Main Technical Data of the Slotting Machine:

Model

M5020

M5032

Max. slotting length

200 mm

320 mm

Max. dimension of workpiece (L u00d7 H)

485 u00d7 200 mm

600 u00d7 320 mm

Max. weight of workpiece

400 kg

500 kg

Max. cutting force

5500 N

7500 N

No. of ram strokes per minute

32,50,80,125

20,32,50,80

Vertical adjustment of ram

230 mm

315 mm

Inclination of ram

0-8u00b0

0-8u00b0

Distance between tool bolding surface and column front

485 mm

600 mm

Max. tool shank size (W u00d7 H)

25 u00d7 40 mm

25 u00d7 40 mm

Table diameter

500 mm

630 mm

Distance between table surface. and low end of ram

320 mm

490 mm

Max. longitudinal travel of table

500 mm

620 mm

Max. cross travel of table

500 mm

560 mm

Range of table longitudinal and cross power feeds

0.08-1.21 mm

0.08-1.21 mm

Range of Main drive motor

3 kw

4 kw

Rotating speed of main drive motor

1430 r.p.m

960 r.p.m

Overall dimensions (L u00d7 W u00d7 H)

1945 u00d71325 u00d71980 mm

2290 u00d71525 u00d72285 mm

Weight (approx)

2400 kg

3500 kg
