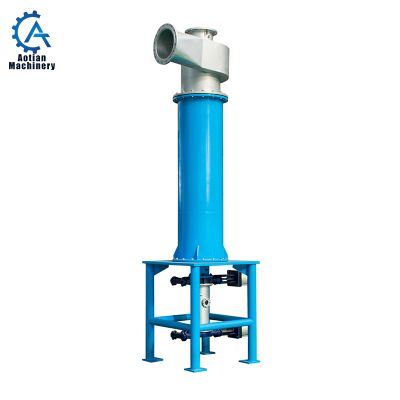

Paper Mill Paper Cleaning Machine Slag Remover High Density Cleaner

1.Product introduction

High concentration cleaner(Bipyramidal efficient slag separator) belongs to impurity cleaning equipment of stock preparation system. It is used to remove the metal, cullet, sand and other heavy impurities achieved by utilizing the different specific gravity between fiber and impurity obtaining the pulp stock of high quality. It is the more advanced impurity cleaning equipment.

2.Performance Charameteristic

The high-concentration cleaner uses the difference in the proportion of fibers and impurities to separate impurities. The slurry enters the slag remover from the feed three-way tangent line at a certain pressure and then rotates at a high speed. Due to the difference in centrifugal force, the heavy impurities are thrown to the wall of the vessel. Under the action of gravity, it gradually moves to the bottom of the cone and enters the slag tank. Due to the small centrifugal force, the fiber gradually travels to the central low pressure area, vortexes up after reaching the bottom, and is finally discharged from the good slurry outlet. The cone of the high-concentration cleaner has a certain taper, and the cone is longer, the radius of rotation of the slurry in the cone is gradually reduced, to avoid the reduction of the speed of the slurry during the rotation, and to ensure that the centrifugal force is strengthened, thus improving the paper material Purification efficiency. The balance water pressure at the bottom is slightly greater than the slurry pressure, so that the fibers cannot enter the slag tank. Only sand, metal particles, rubber blocks, plastics and other heavy impurities sink into the tank, reducing fiber loss. The difference between the specific gravity of fiber and impurities is used, and the principle of centrifugation is used to separate heavy impurities from the pulp to achieve the purpose of purifying the pulp. The slag remover has a small area, large production capacity, automatic and adjustable slag discharge operation, simple operation, not easy to block the slag discharge port, high purification efficiency, and low fiber loss. It can be processed in one stage or one stage and two stages. The cone is wear-resistant and has a long service life; there is no transmission and no more maintenance is required. There are two types of automatic and manual.

3.Our Company

Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China . We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.

4.Our Customers

5.Our Exhibition

6.Our Certificate

7.Buyer Feedback

Our products have won high reputation among our customer from different countries.These are the feedback from them.

8.Our services

(1).All products adopt all-around computer aided design (CAD)
(2).complete sets machine will be pre installed before delivery.
(3).one year warranty after machine testing and running.
(4).we will send engineers/technicians to install the whole production line
(5).after one year,we can guide and help you to maintain the machines.and spare parts will be provided on cost price.
(6).every 2 years,we can help to overhaul the complete machines for free.
(7).Free production technology and process configuration.
(8).we can provide turn key-project service.
